Large Modern Porch Swing Couch

Build your own porch swing in a couch size! Fits standard 24 x 24 inch outdoor cushions. Basic design is easy to build with a simple tools and off the shelf materials. Free.

Dimensions

Use the size-specific shopping and cut lists below.

Large Modern Porch Swing Couch dimension diagram 1

What you need

5 - 2x4 @ 8 feet long
8 - 1x6 @ 72" long (can also use cedar fence pickets, but must be properly sanded or planed first)
70 - 1-1/2" to 2" long self tapping exterior use screws (look for the star bit ones)
50 - 2-1/2" to 3" long exterior self tapping wood screws (look for the star bit ones)
Hardware to hang swing and swing chain

Step by step

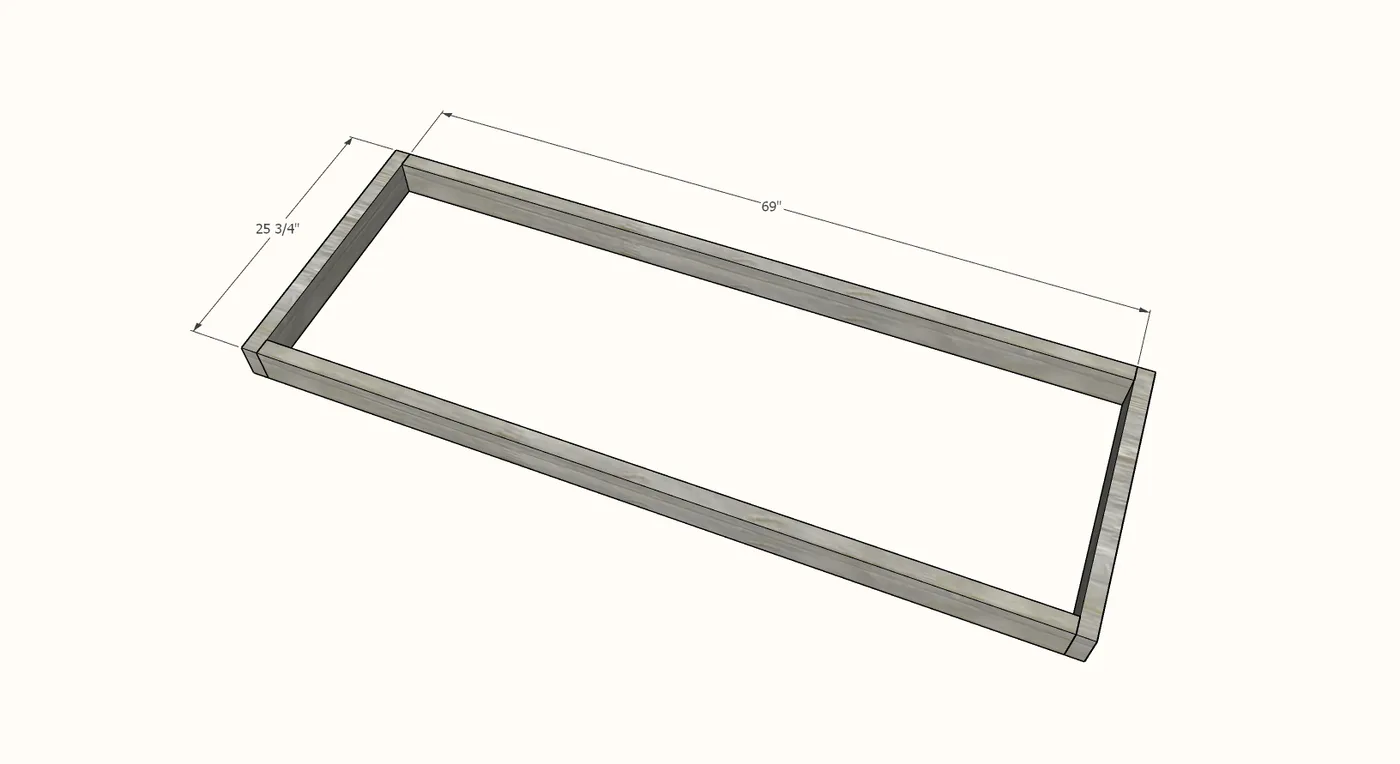

Step 1

Use the longer screws to build the frame for the seat, two screws per joint.

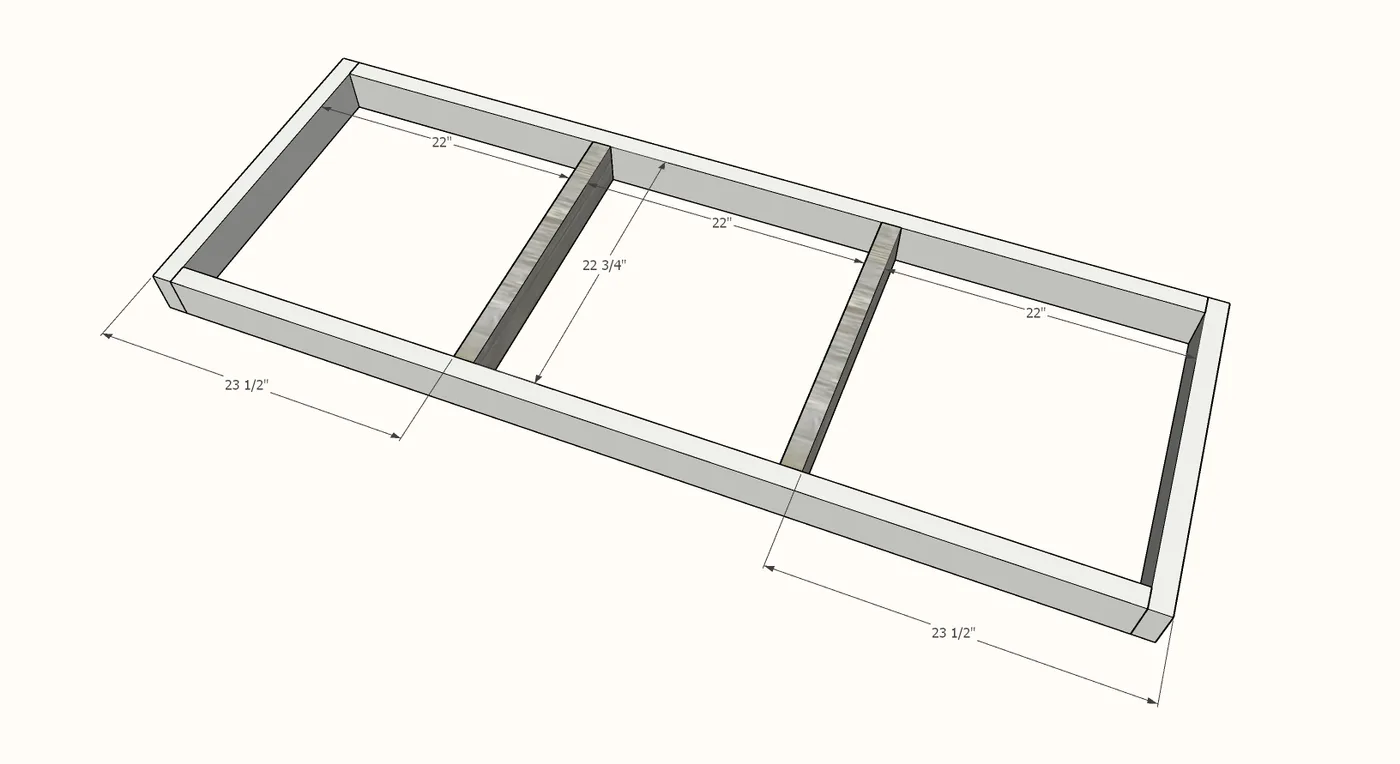

Step 2

Add center supports to the seat frame with the longer screws, use two screws per joint.

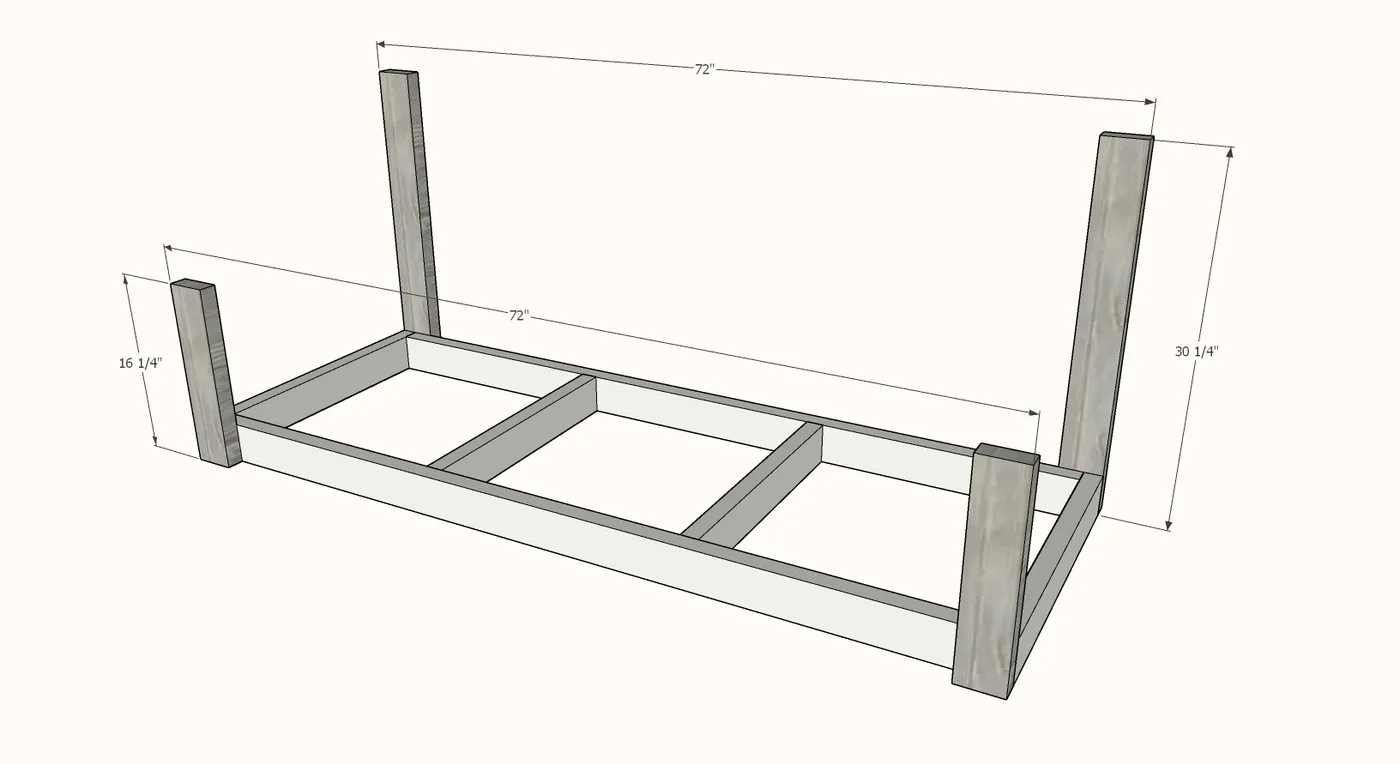

Step 3

Attach back rest and arm rest supports to the frame, all outside edges flush. Use three screws per joint, using the longer screws.

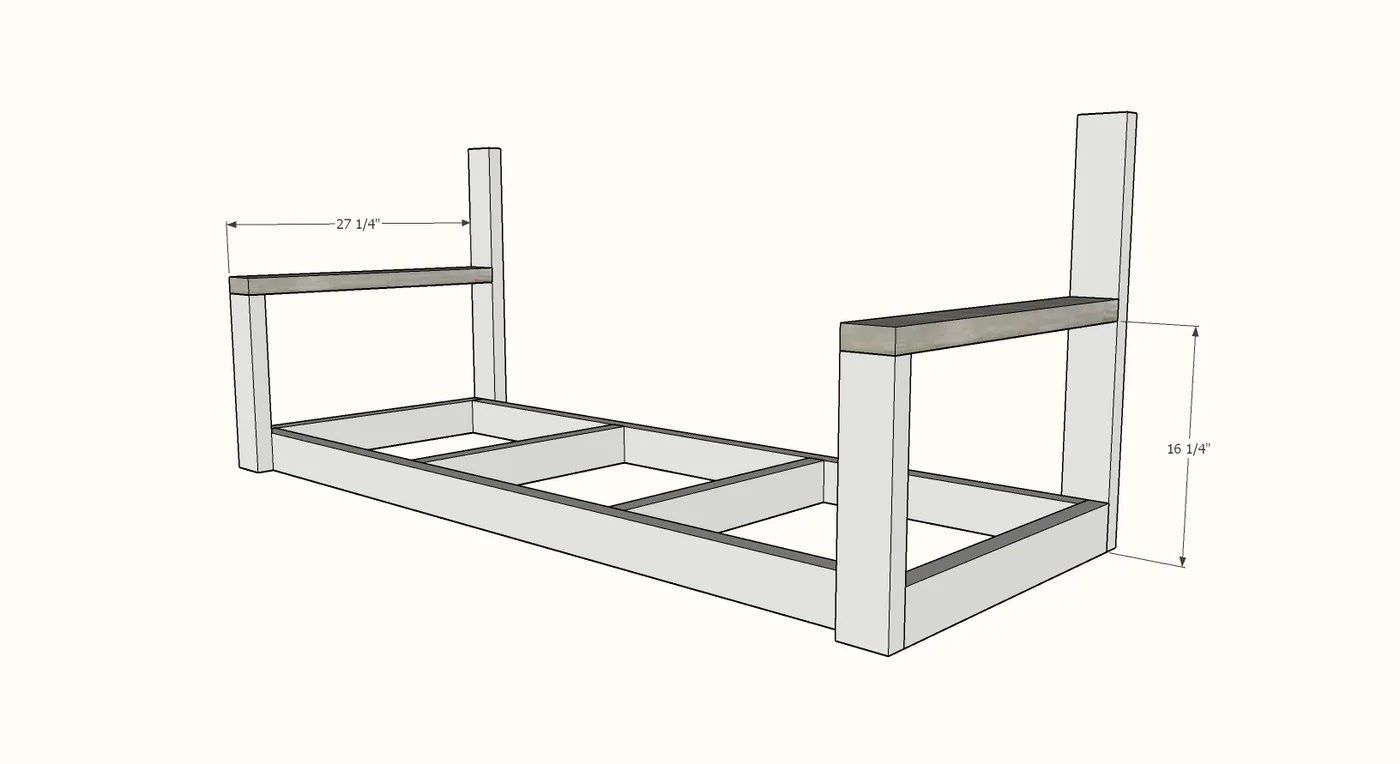

Step 4

Attach arm rest to the tops of the arm support and to the back support. Use two screws per joint, using the longer screws.

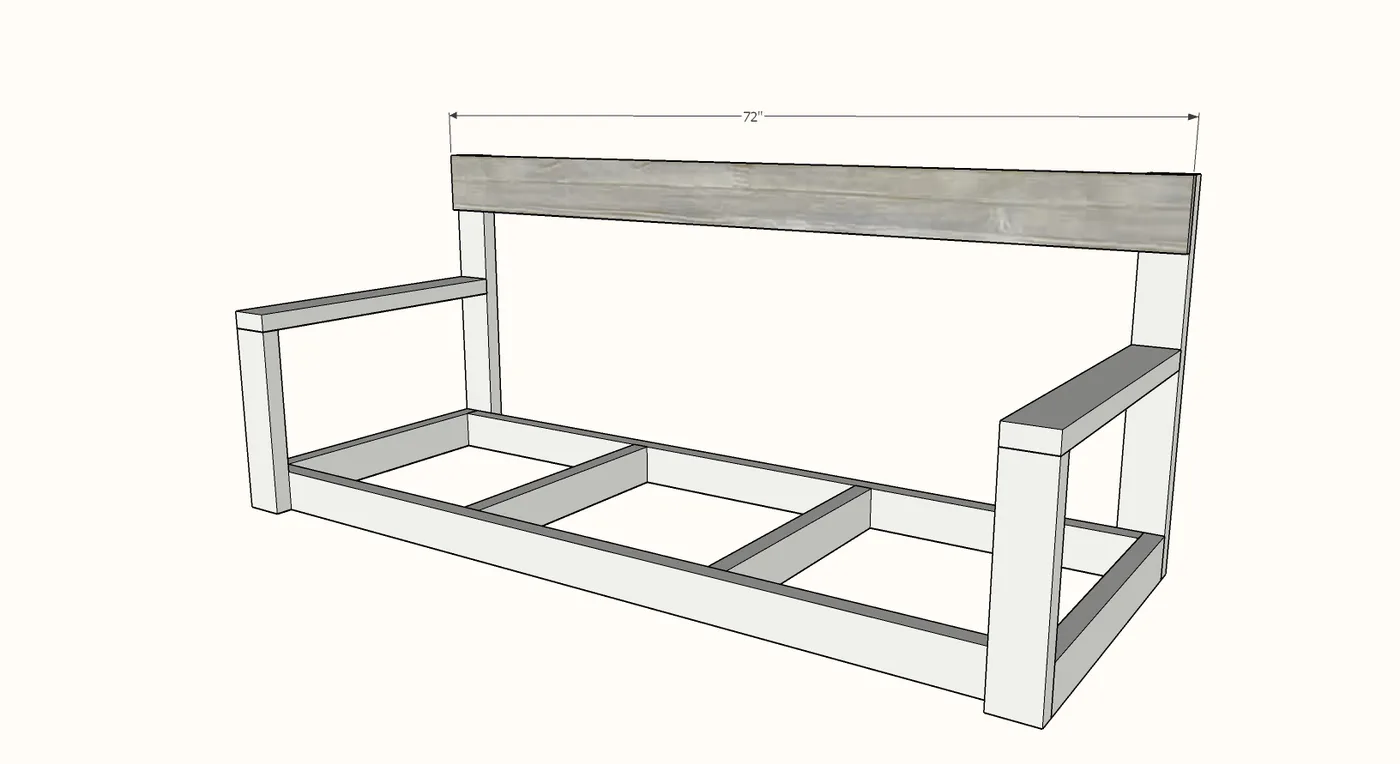

Step 5

Attach the top seat slat to the back supports, all outside edges flush, using the shorter screws, two per joint.

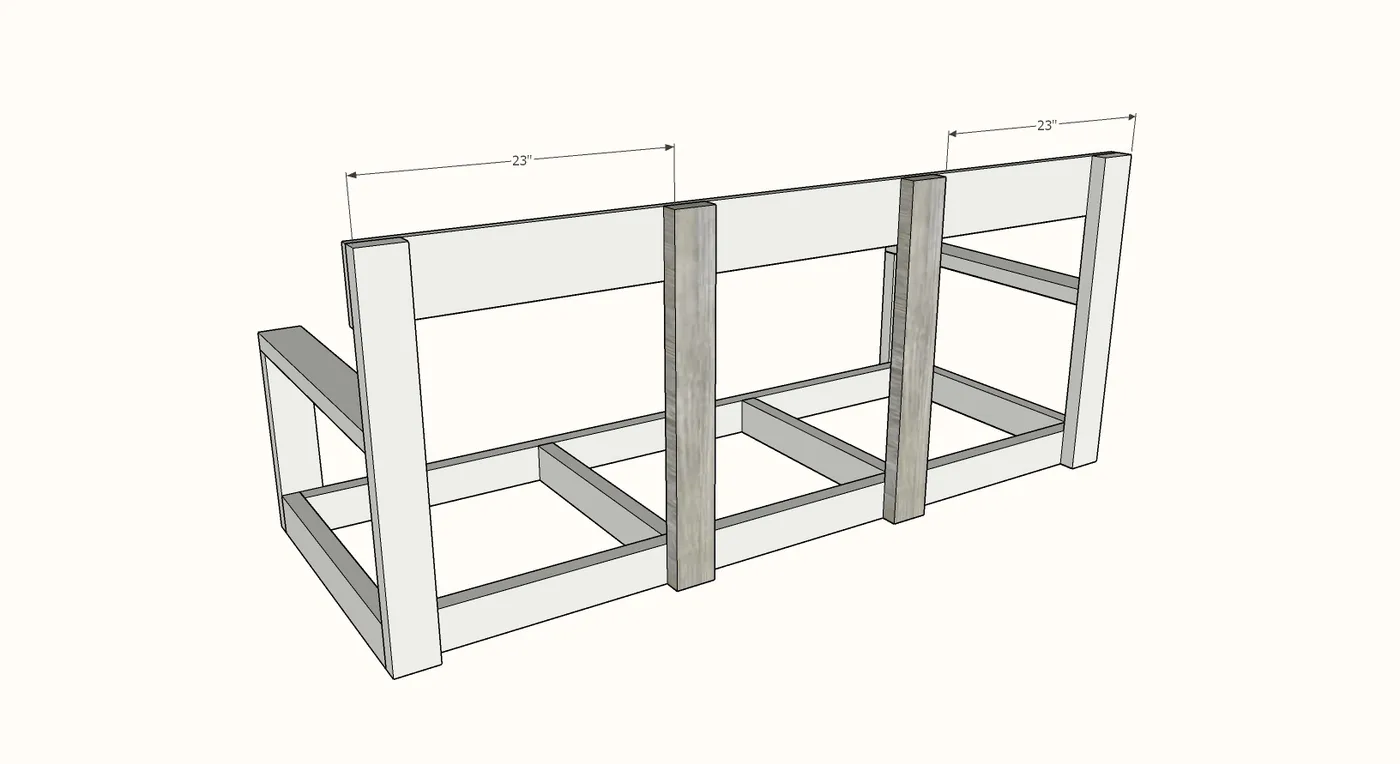

Attach remaining back supports using the longer screws into the seat frame, two per joint.

Then attach to the top seat slat with shorter screws, two per joint.

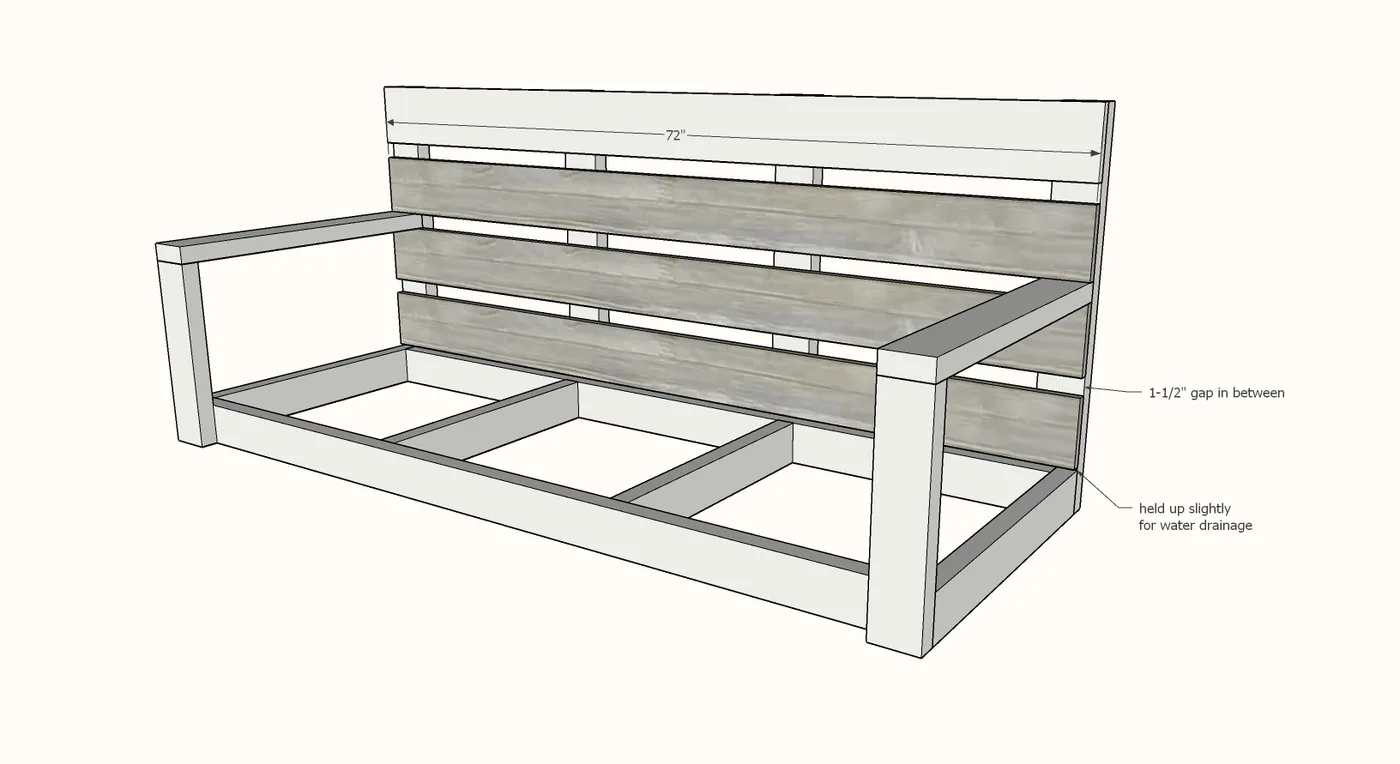

Step 7

Attach remaining seat back slats to the back with the shorter screws, two per joint.

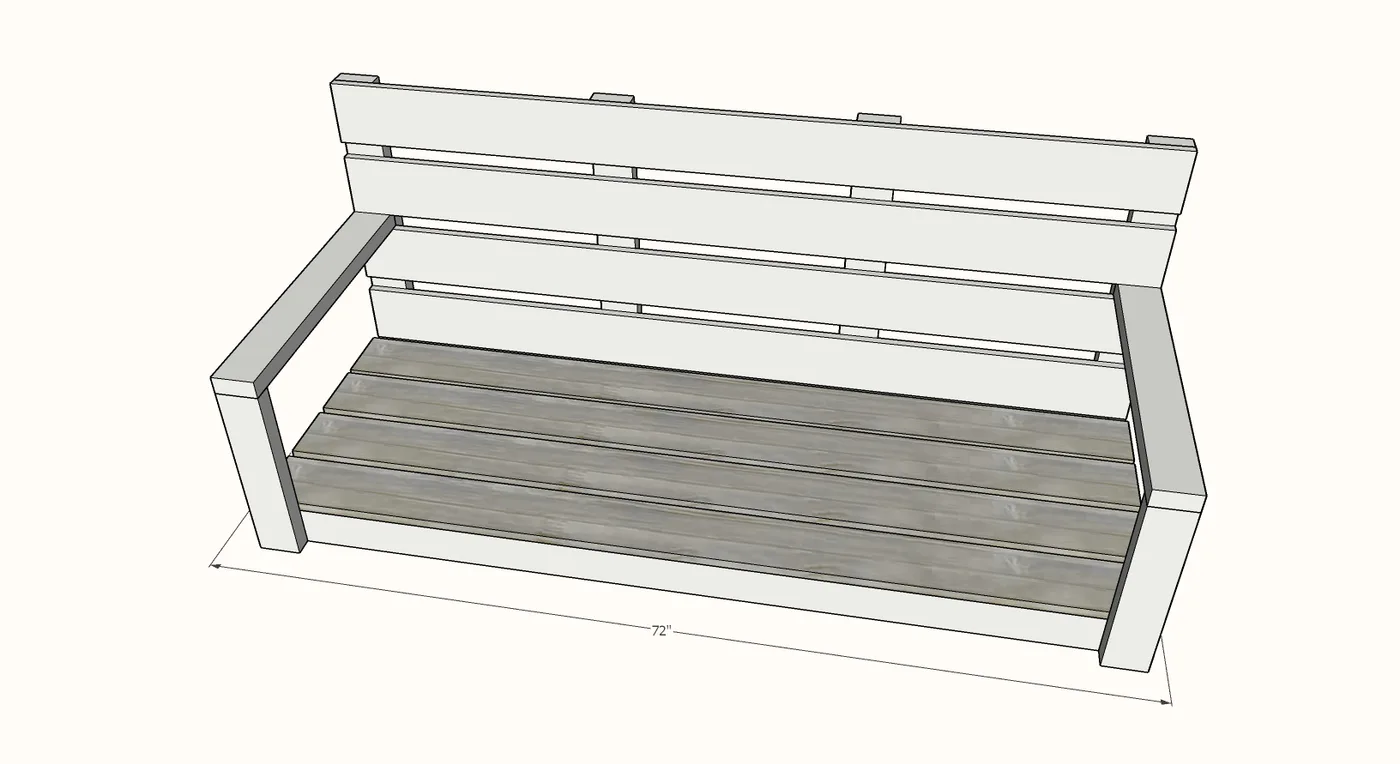

Step 8

Attach seat slats to the seat frame, using the shorter screws, two per joint.

Step 9

We hung ours on an existing playground swing set, but your situation may likely vary from mine. Here is a good article on proper hanging of swings. On this swing, you will want to hang from the side aprons of the seat frame - that's where the majority of your weight will be. Also, I hung ours at a very slight (approximately 5 degree) back angle, to increase the comfort level. DISCLAIMER: This is a very heavy swing and must be properly hung. Build, hang and use at your own risk - We are not liable for personal injury, loss or death from use of swing.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
