Armless 2x4 Outdoor Sofa Sectional Piece
Build your own outdoor sectional! This is a to build a 2x4 Armless Outdoor Sofa - it works as a center piece to create a sectional with our 2x4 Outdoor Sofa and One Arm 2x4 Outdoor Sofa Plans. Step by step plans with detailed diagram, shopping list and build video.

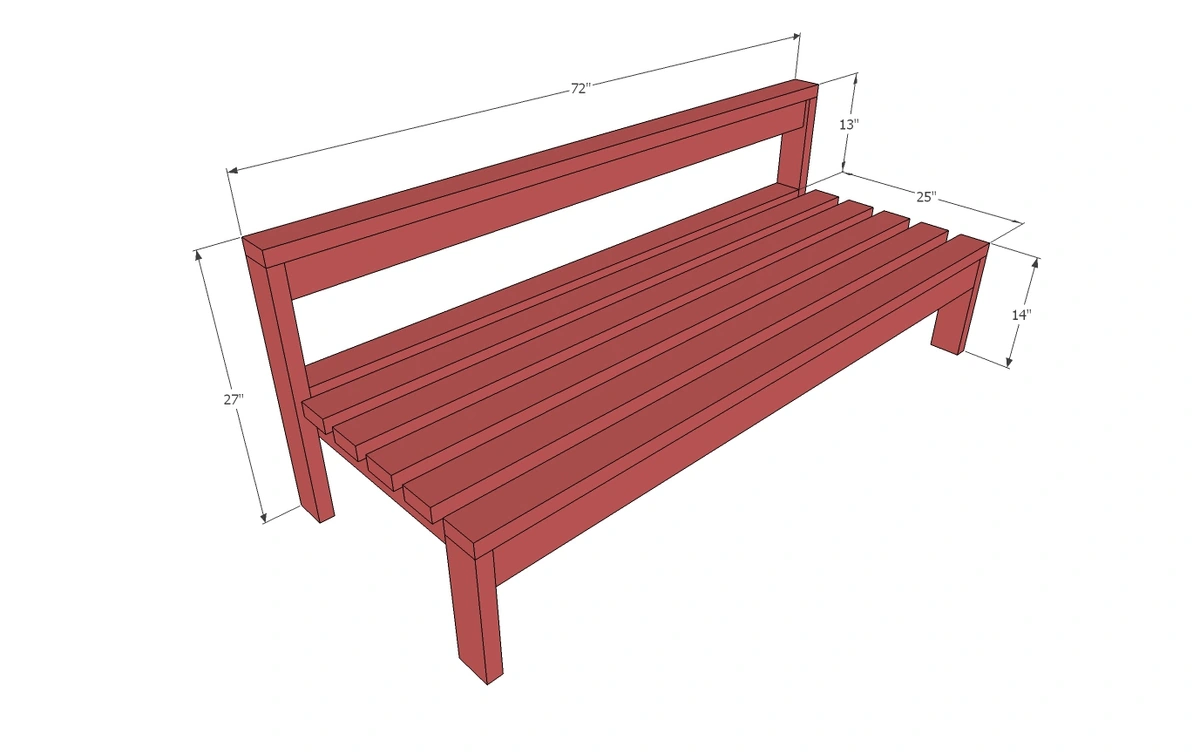

Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 6 - 2x4s @ 12 feet long (cut the 72" and 69" pieces from these boards)
- 1 - 2x4 @ 8 feet long
- 2-1/2" to 3" long exterior self tapping wood screws (about 100 screws)
- 2 - 2x4 @ 69"
- 6 - 2x4 @ 25-1/2"
- 2 - 2x4 @ 12-1/2"
- 6 - 2x4 @ 72"
- 2 - 2x4 @ 69"
Designed for three cushions each 24" x 24" - alter cut list to fit your cushions
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- compound miter saw
Step by step

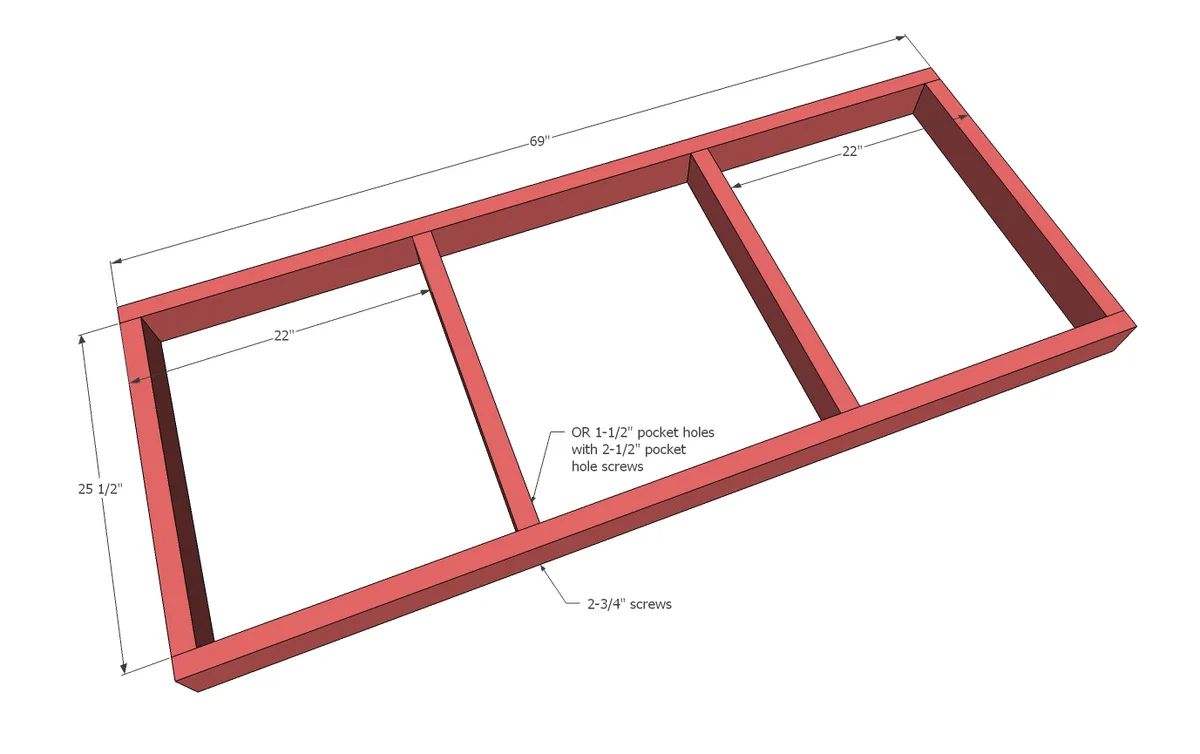

Step 1
Build the basic seat frame by attaching with the exterior wood screws or pocket holes. Use glue at joints (exterior rated). Check for square by measuring from opposite corners and adjusting so the two diagonals are exactly the same.
Step 2
Add legs, ensuring that the bottom of the legs are 28-1/2" apart.

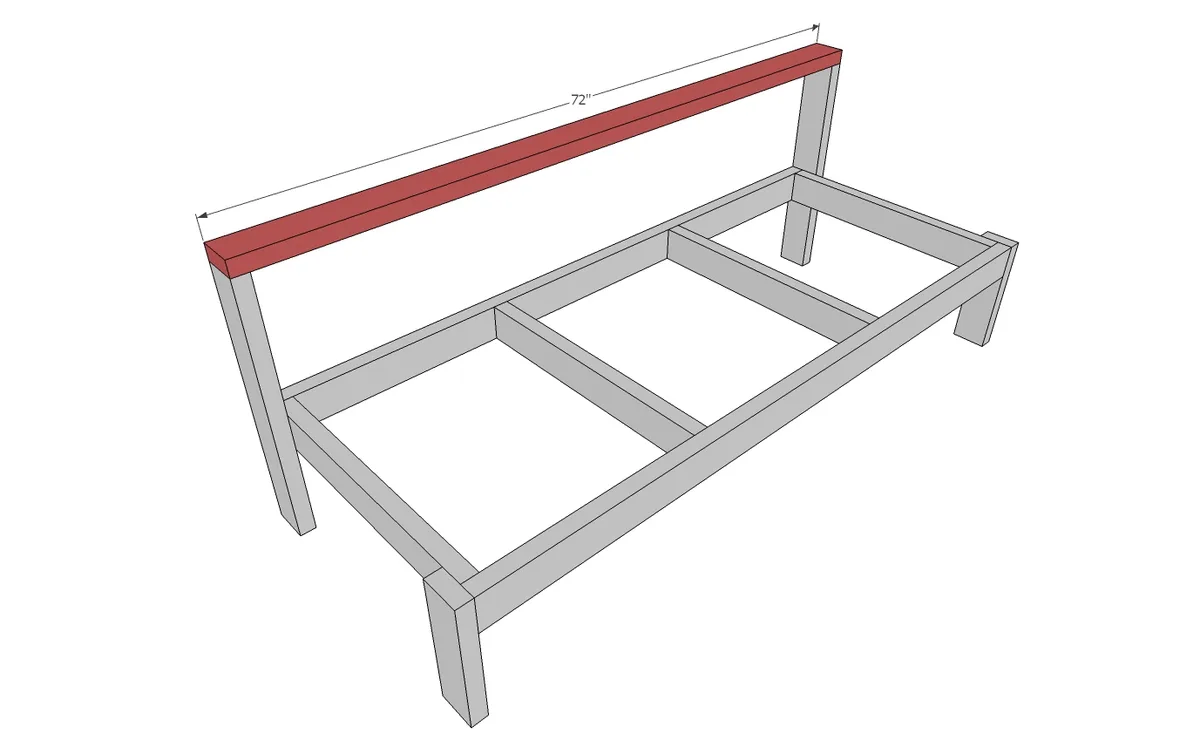

Step 3
Screw back to tops of back legs with exterior wood screws.
Step 4
Add optional back support with screws from top and sides. Inset 1/4".
Step 5

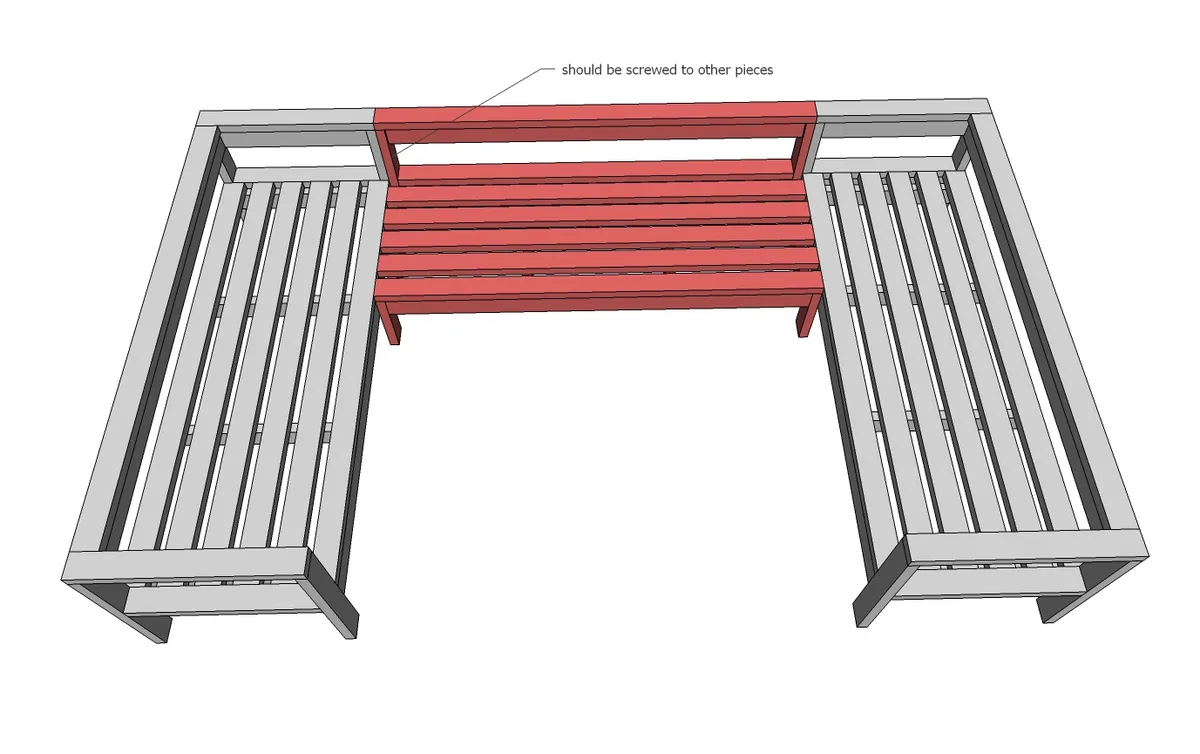

Step 6
Attach the armless piece to the full sofas for optimal support.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
