Bristol Outdoor Lounge Chair
to build outdoor lounge chair inspired by Restoration Hardware Belvedere Chair.
Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 1 - 1x8 @ 10 feet long
- 6 - 1x4 @ 8 feet long
- 1 - 2x2 @ 6 feet long
- 2 - 1x8 @ 24 1/2"
- 2 - 1x4 @ 9 1/4"
- 2 - 1x4 @ 21"
- 2 - 1x8 @ 28 1/4"
- 4 - 1x3 @ 2" (You can use 1x4 scraps as well)
- 2 - 1x4 @ 22 3/4" (longest point, one end cut at 15 degree bevel - see diagram)
- 5 - 1x4 @ 24 1/2"
- 2 - 1x4 @ 32 3/8" (longest point, one end cut at 15 degree bevel - see diagram)
- 2 - 2x2 @ 28 1/4"
- 7 - 1x4 @ 30"
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- sander
- level
- countersink drill bit
Step by step
Step 1
Build the back as shown above. Clamp joints for the smoothest joint.
Step 2

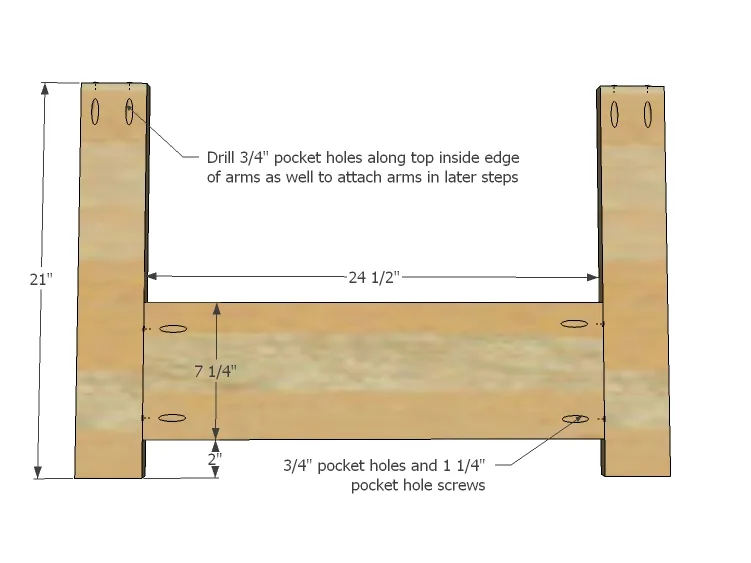

Build front frame as you did the back.
Step 3
Now attach the front and back to create the seat box.

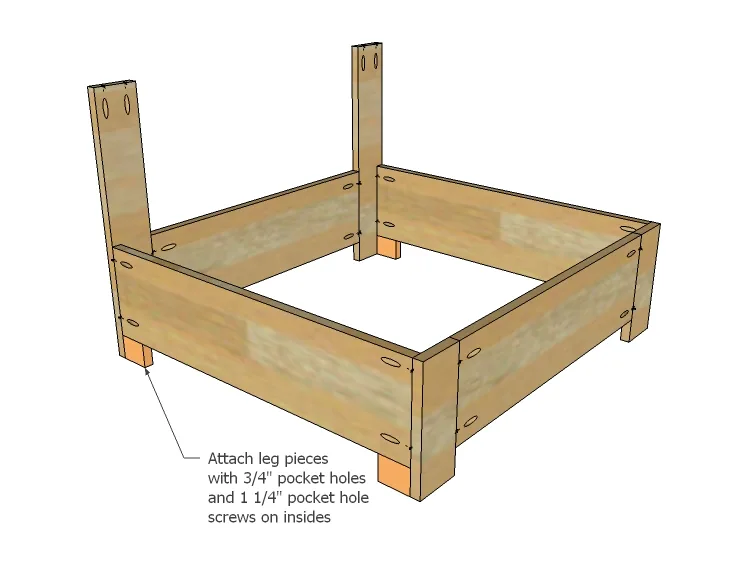

Step 4

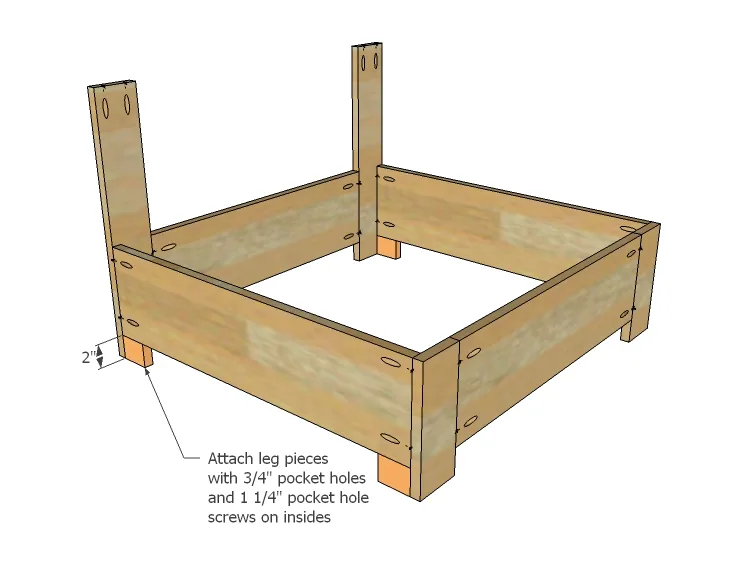

Step 5
Step 6
Now build the back as shown in diagram. Remember the bottom is angled to create a back angle for the chair.
Step 7
Now attach the back. For sure, it's going to be flimsy at this point.

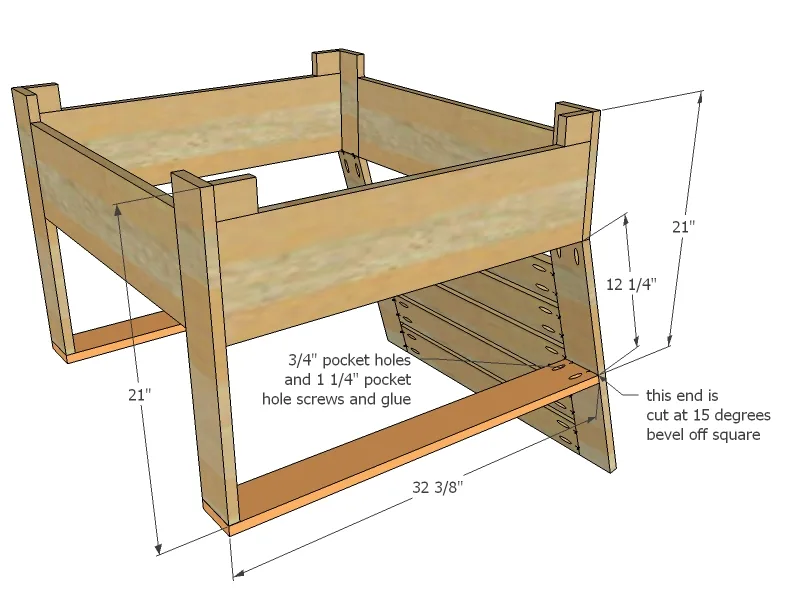

Step 8
The arms will support considerably.

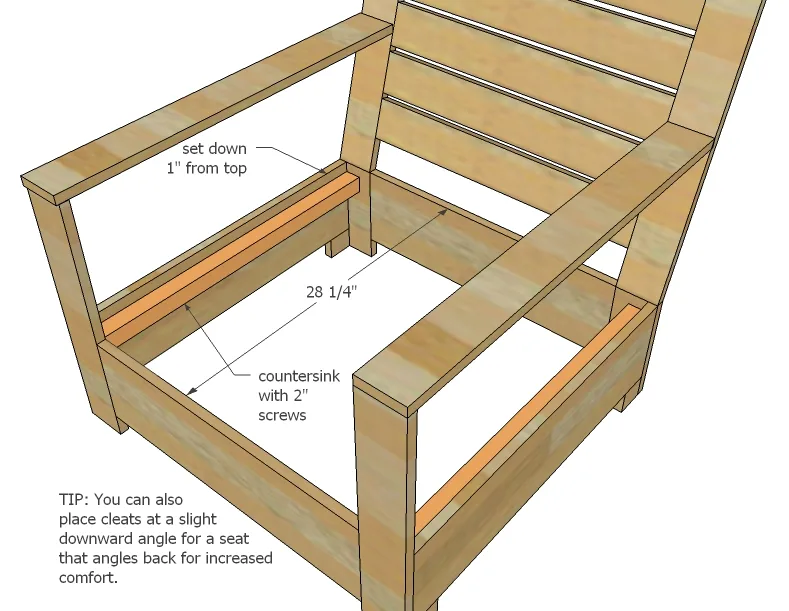

Step 9
Attach cleats. You can also angle cleats downward and backward for an inclinded seat - some prefer for comfort.
Step 10
Finally, just add seat slats and cushions!
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
