Triple Truss Coffee Table
to build a truss coffee table out of 2x4s.
Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 4 - 2x4 @ 8 feet long
- 1 - 2x2 @ 8 feet long
- 3- 1x3 @ 8 feet long
- 1 - 2x6 @ 8 feet long or stud length
- 2 - 2x6 @ 10 feet long
- 1 1/4" and 2 1/2" pocket hole screws
- 2 1/2" wood screws (decorative screws for attaching top to bases)
- 6 - 2x4 @ 24 1/2"
- 6 - 2x4 @ 16 1/2"
- 6 - 2x4 @ 12 1/8" (Both ends BEVELED at 40 degrees off square with ends parallel)
- 4 - 2x2 @ 20"
- 10 - 1x3 @ 20"
- 5 - 2x6 @ 50 1/2"
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- sander
Step by step
Step 1
Start by making three of the truss frames. Whitney opted for wheels so you cut her legs shorter. If you opt for pocket holes, place on top of top board and bottom of bottom board - the top gets covered by the tabletop boards, and the bottom will be hidden underneath.

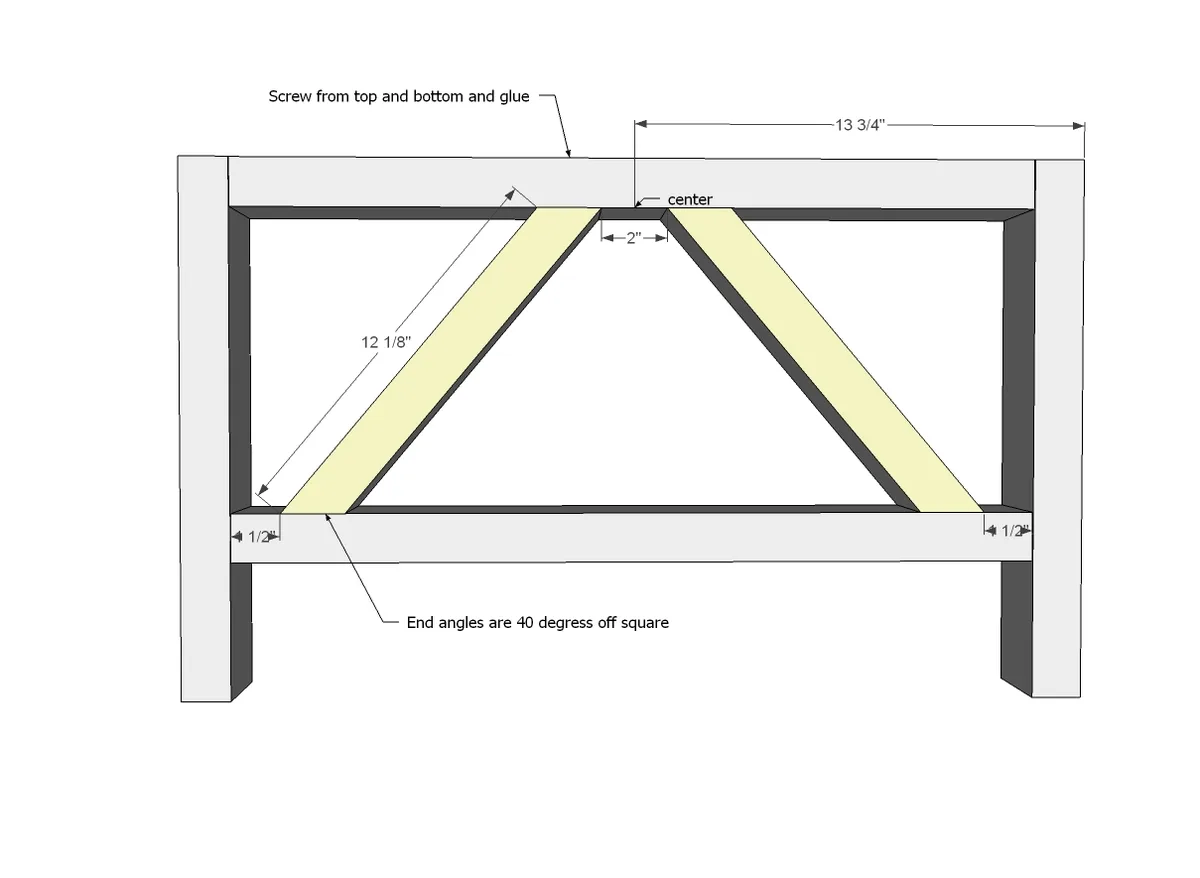

Step 2
Add the truss detail in. The easiest and most hidden way to do this is to nail or screw from tops and bottoms with 2 1/2" screws or longer.

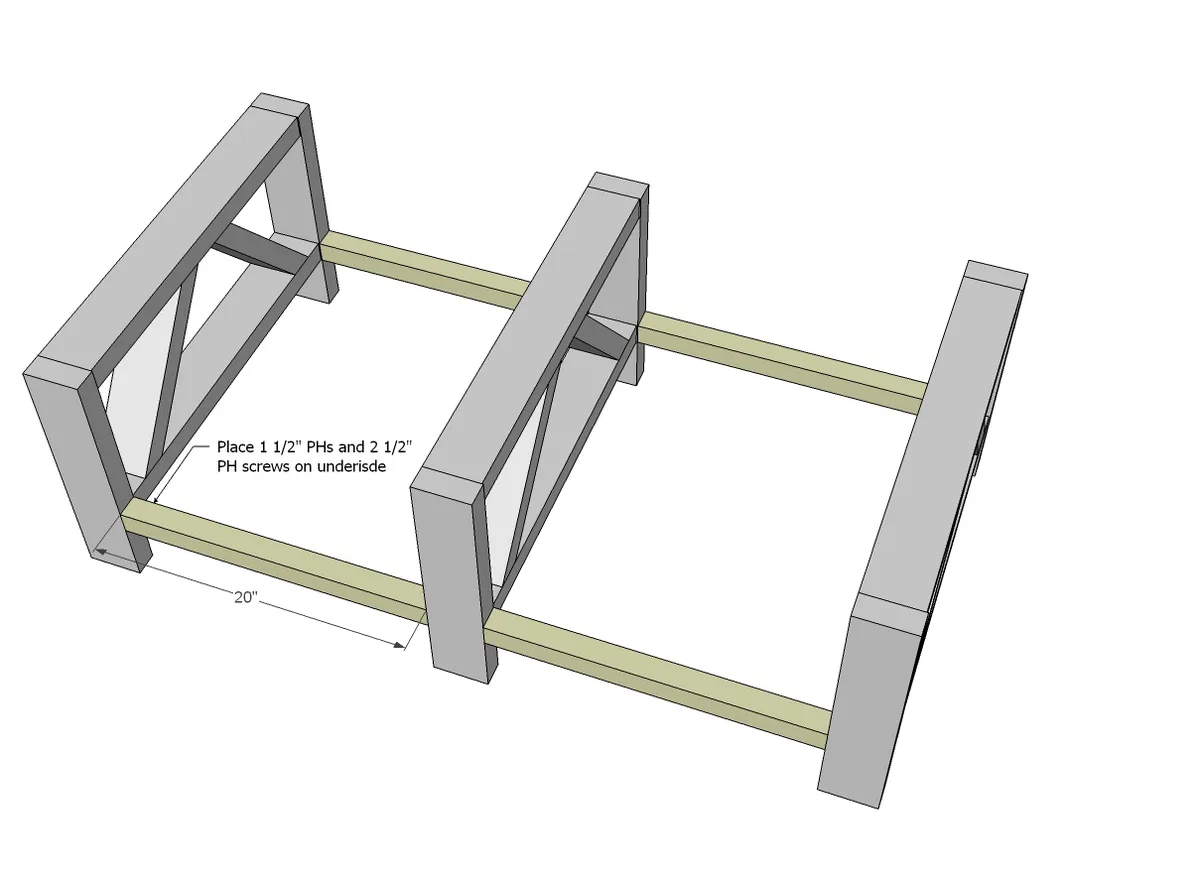

Step 3
Take the three trusses and joint together with side aprons. The best way is pocket holes on the insides.

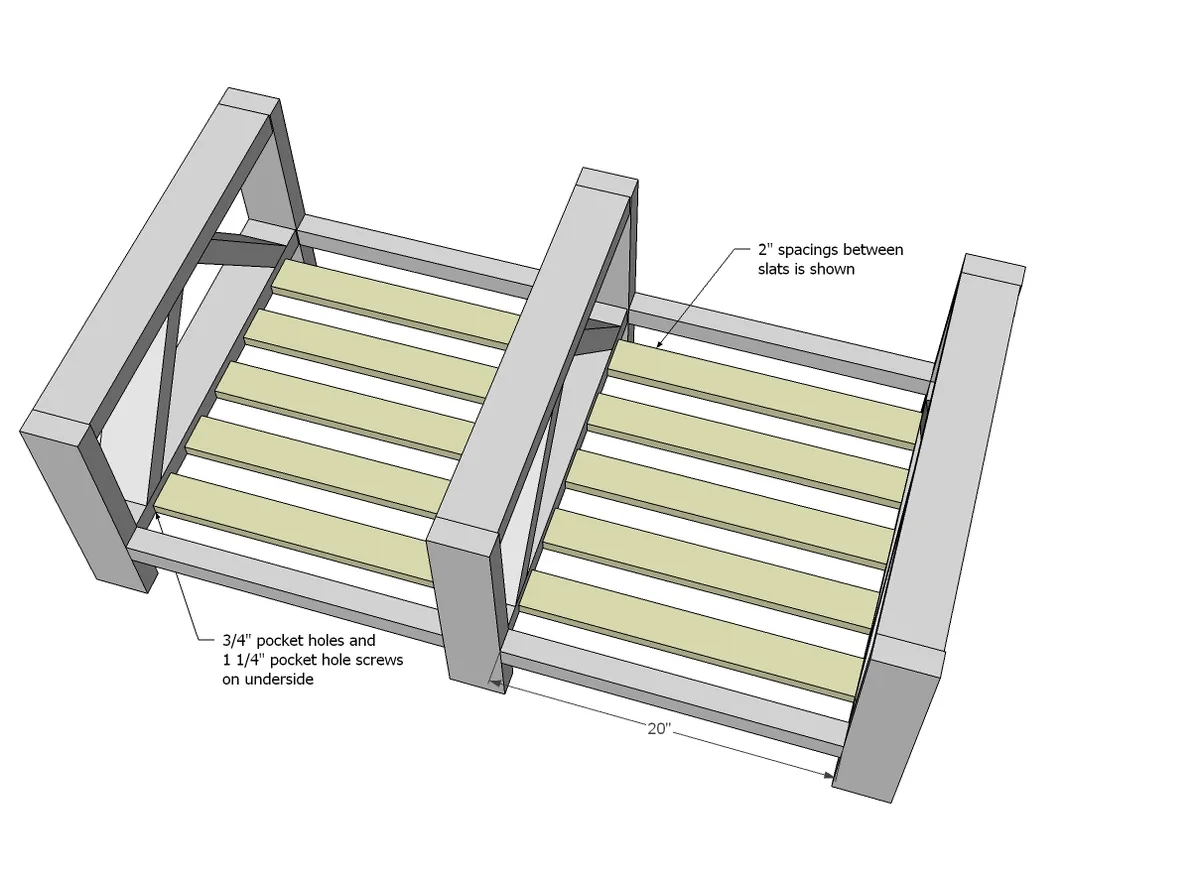

Step 4
Next, add in the rungs. The best way is 3/4" pocket holes and 1 1/4" pocket hole screws on the underside.

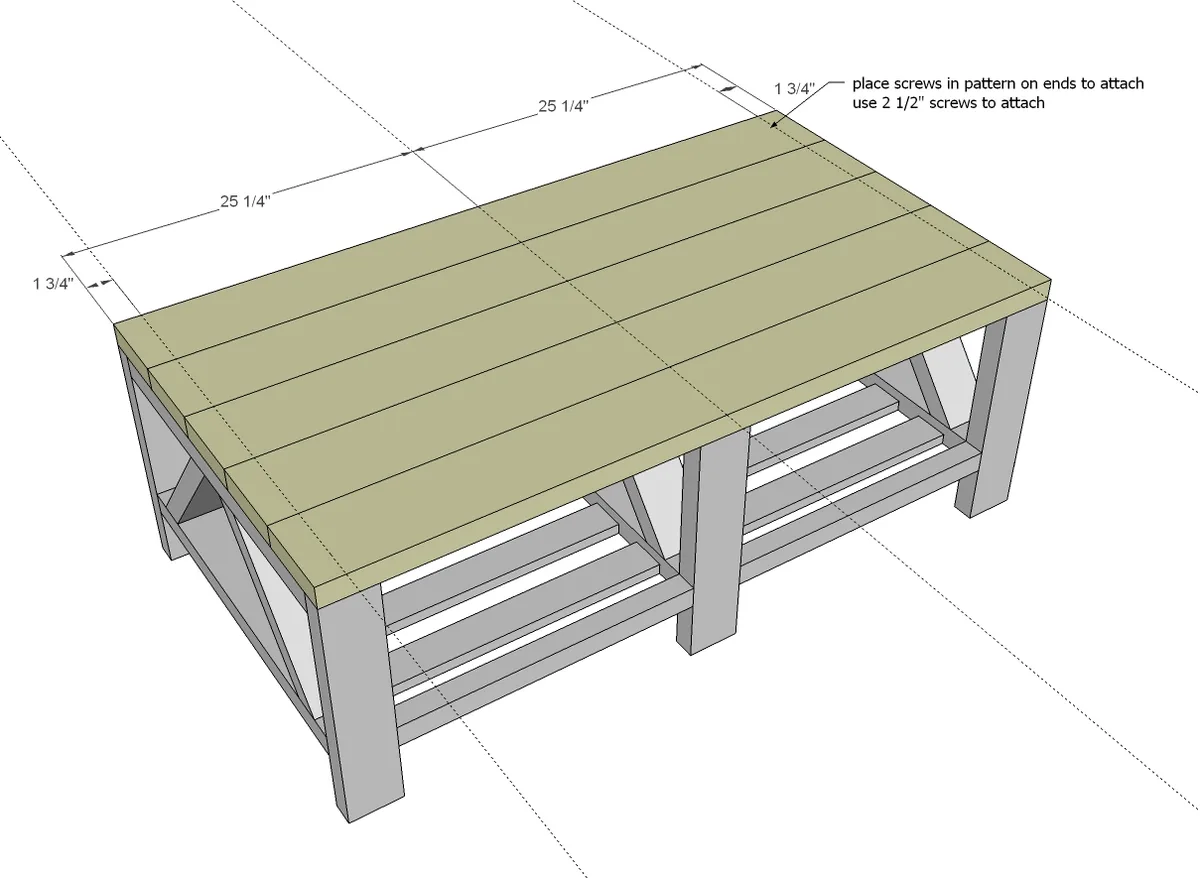

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
