Treehouse Dollhouse
for a treehouse dollhouse. This adorable treehouse dollhouse is simple to build with off the shelf materials. Step by step plans include shopping list and cut list and detailed diagrams. Built by Jaime Costiglio for Handbuilt Holiday 2021.

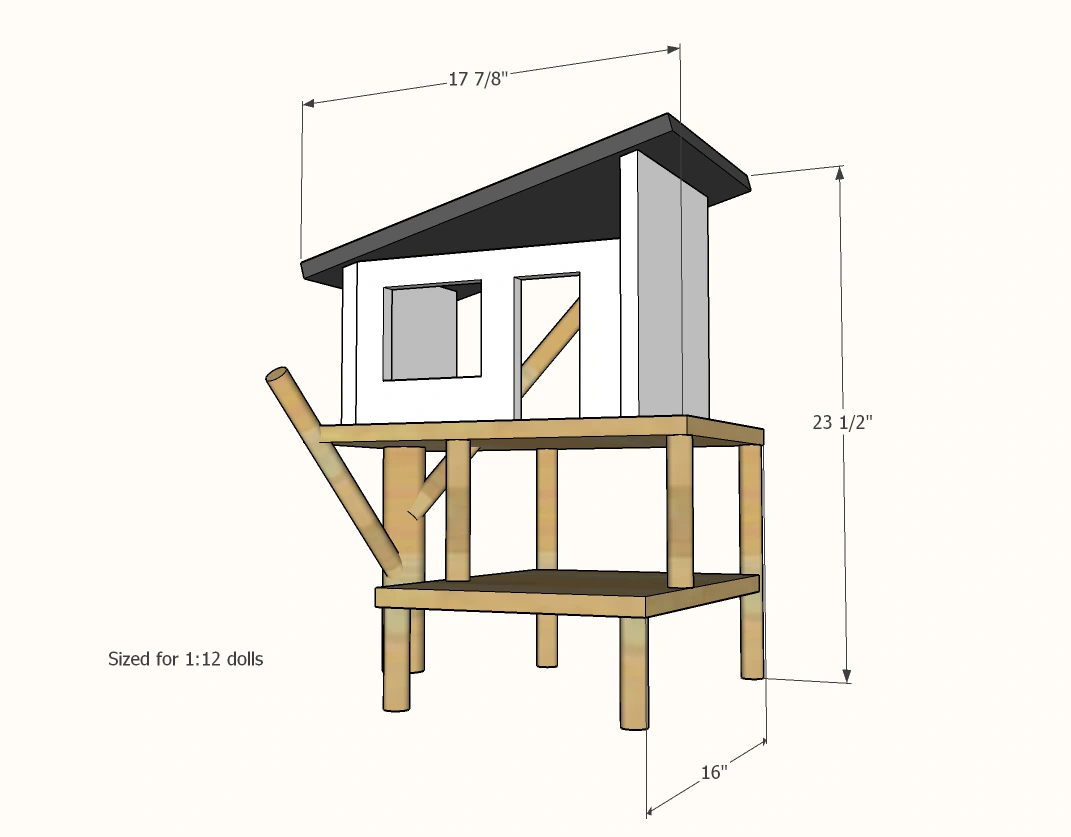

Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 1 - 1x12 @ 4 feet long
- 2 - 1" dowels, 4 feet long
- 1 - 2" dowel, 12" long
- 1 - 1x10 @ 20" long
- 1 - 1x8 @ 12-1/2" long
- 2" self tapping wood screws, star bit or similar
- 1-1/4" brad nails
- wood glue
- Decks
- 1 - 1x12 @ 13" *
- 2 - 1" dowels @ 4"
- 2 - 1" dowels @ 10-3/4"
- 1 - 1x12 @ 18"
- 2 - 1" dowels @ 6"
- Tree
- 1 - 2" dowel @ 10-3/4"
- 1 - 1" dowel @ 12" - one end cut at 45 degrees
- 1 - 1" dowel @ 18" - one end cut at 30 degrees off square
- Dollhouse
- 1 - 1x10 @ 7-1/2" - long point measurement, one end cut at 15 degrees off square
- 1 - 1x10 @ 10-3/4" - long pointmeasurement, one end cut at 15 degrees off square
- 1 - 1x8 @ 12-1/2"
- 1 - 1x12 @ 16-1/2" *
*Cut list is correct. I shortened these two measurements after the build so all the pieces will fit on a 48" long 1x12 piece.
- measuring tape
- pencil
- safety glasses
- drill
- jigsaw
- compound miter saw
- nailer
- sander
Step by step

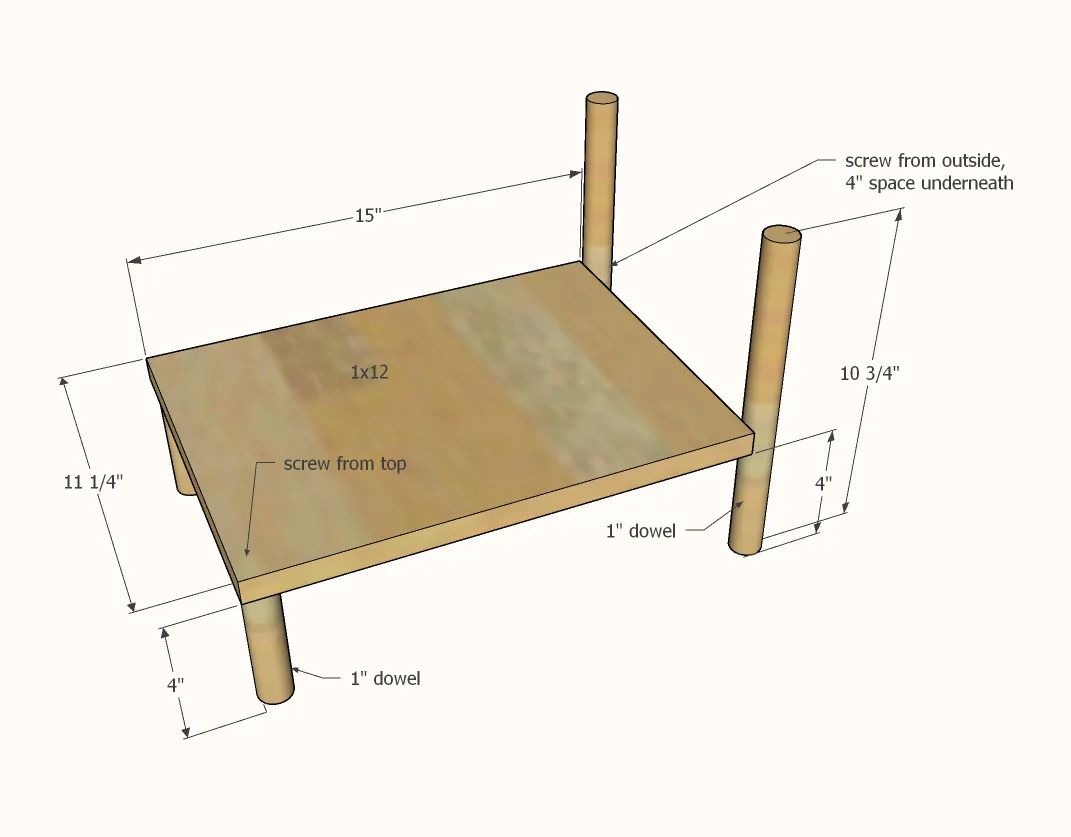

Step 1

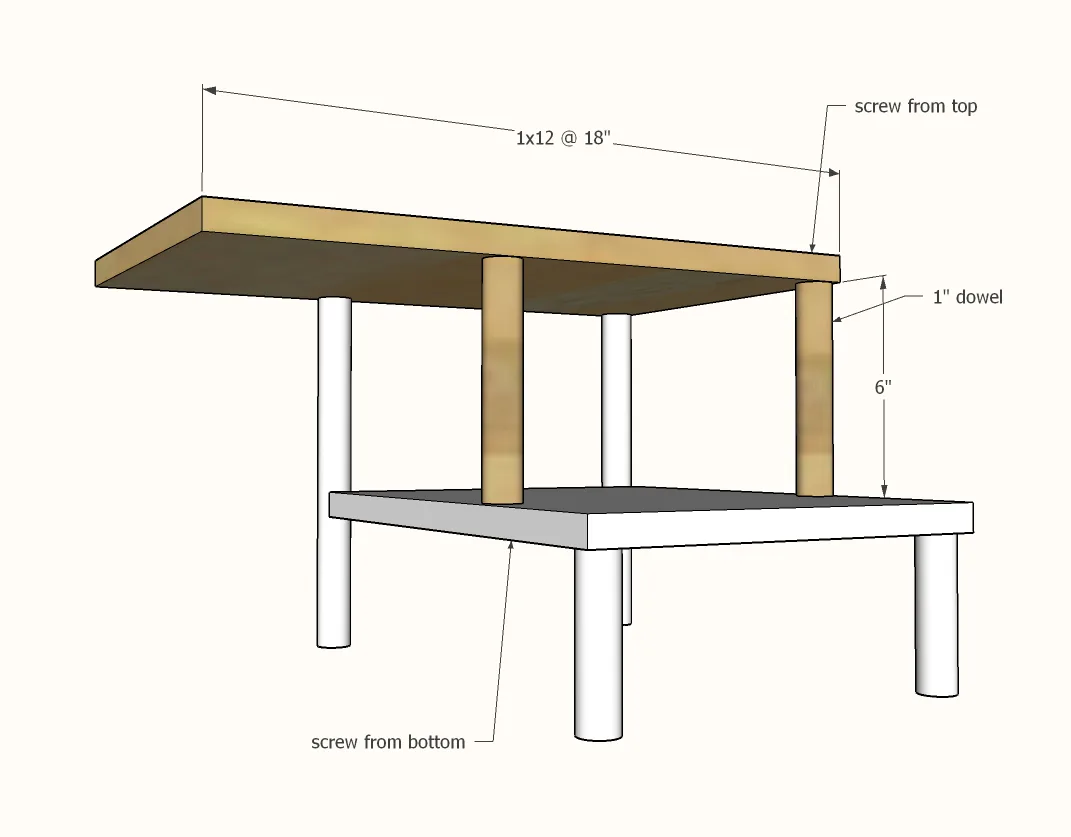

Step 2

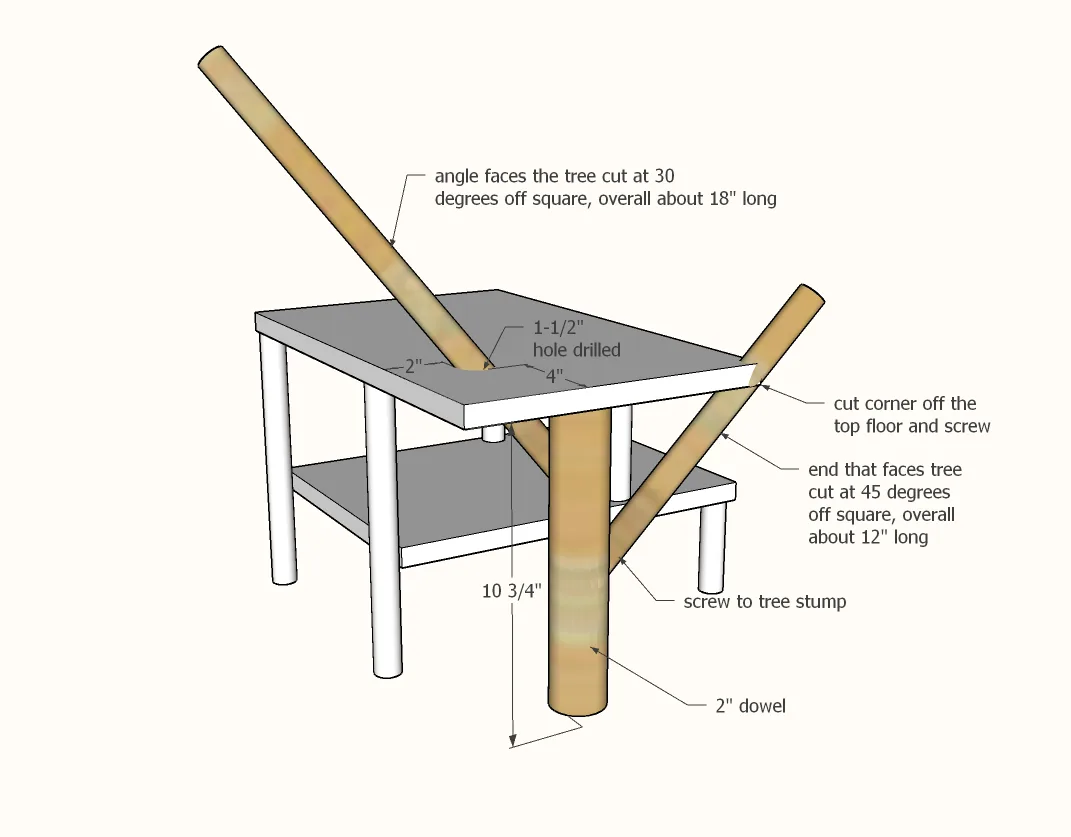

Step 3

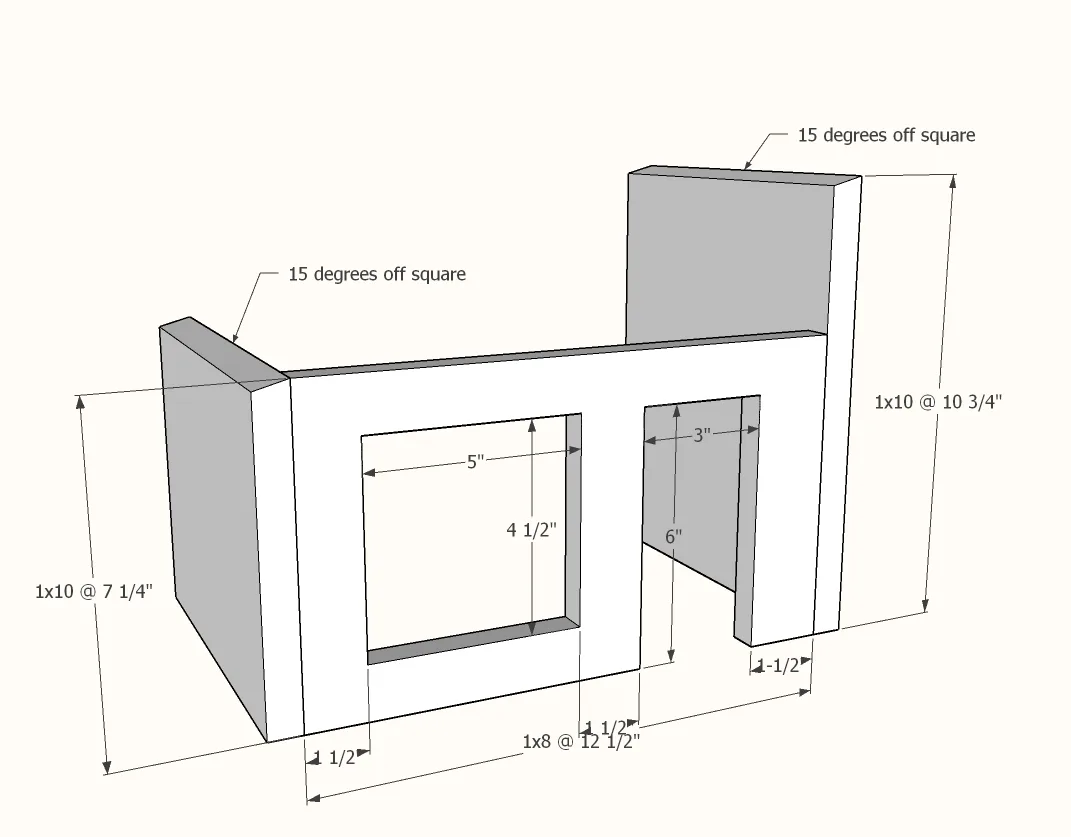

Step 4

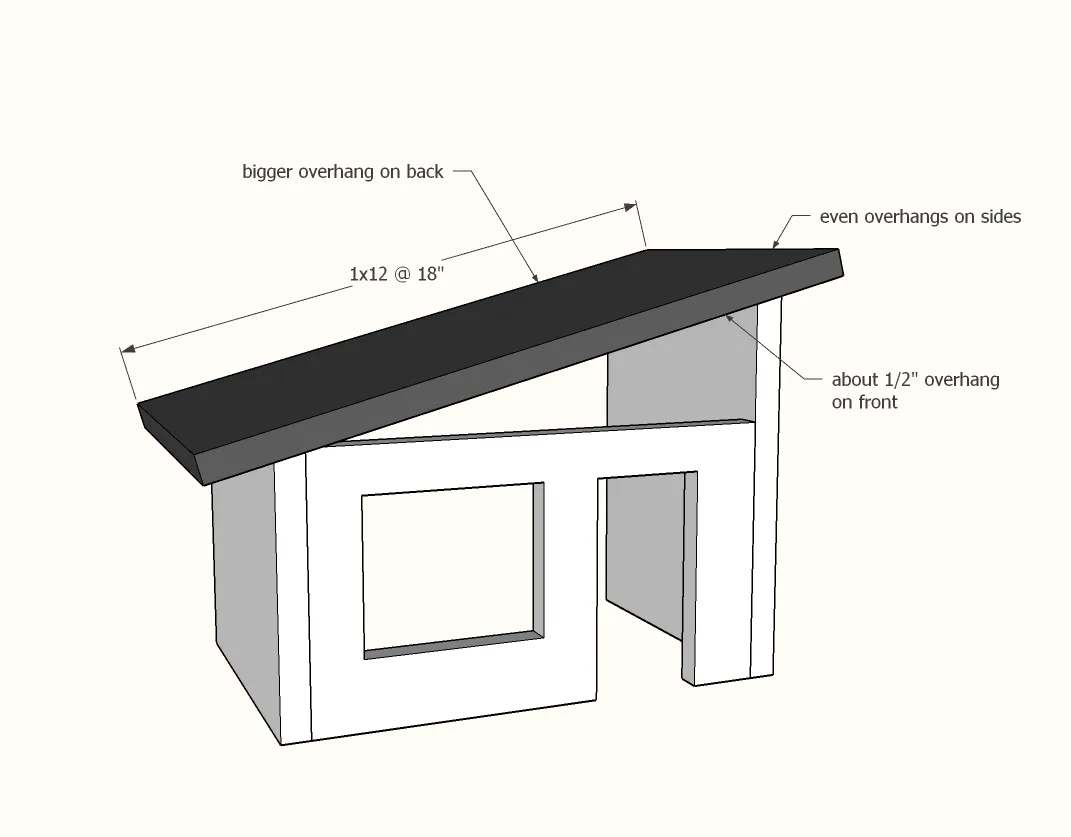

Step 5

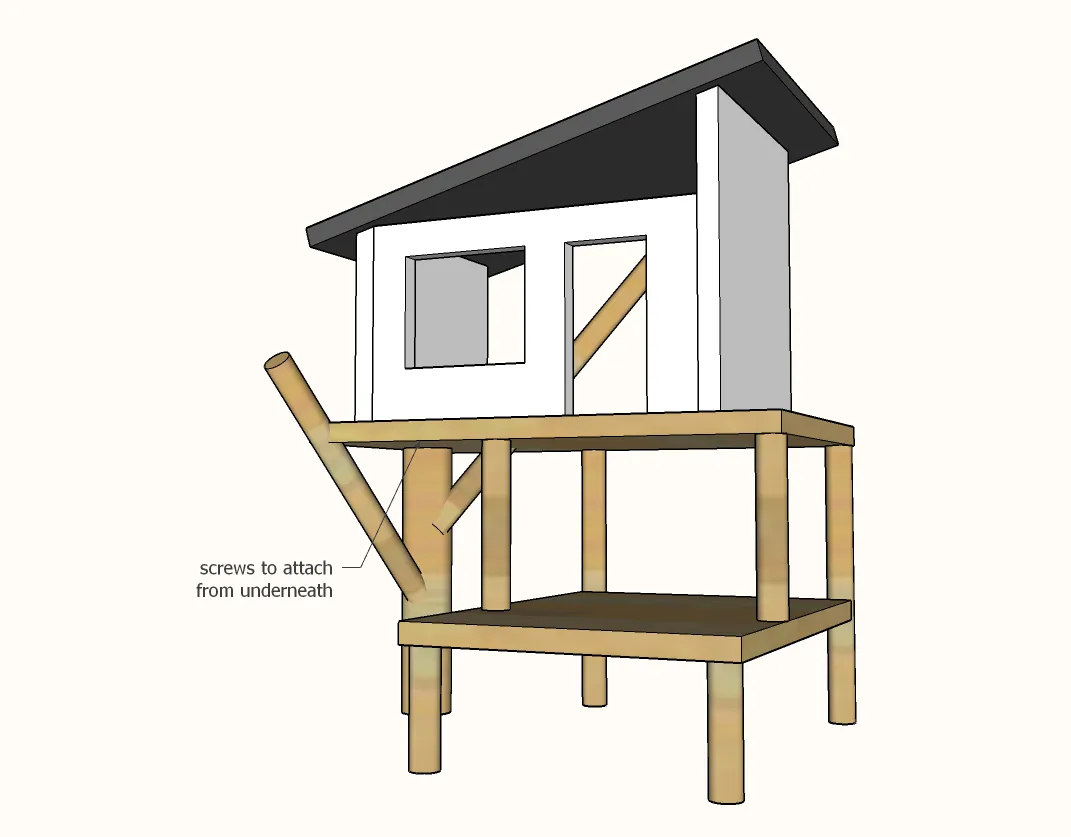

Step 6
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
