Side Hutch

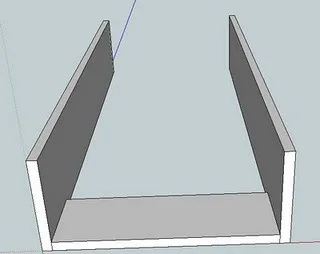

Step 1

As shown above, start by nailing through the sides of A, the sides, into the edges of B, the back support. Notice how B is inset. The overall width of the cabinet (not including the crown) will be 18"

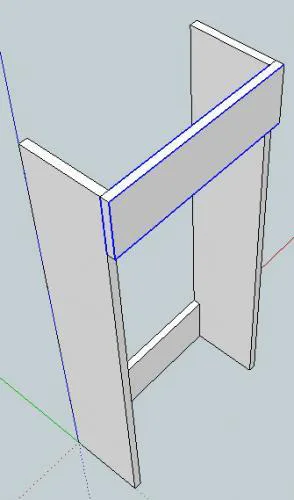

Step 2

The top header piece, C, will sit on top of the sides, as shown above. Nail through the face of C into the edges of A.

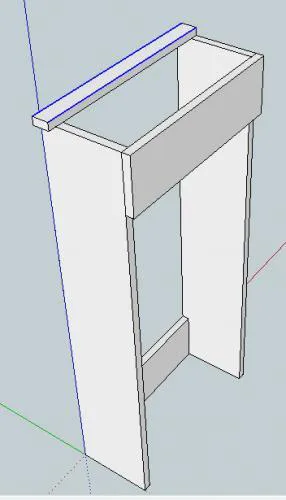

Step 3

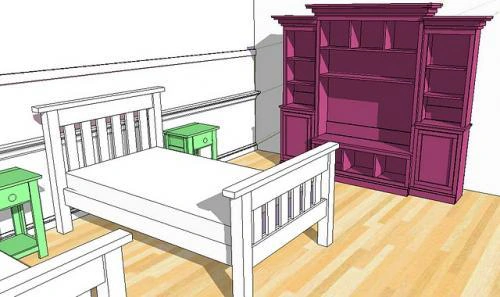

Attach D to the top, leaving all of the overhand on one side, alternating sides for the other hutch. Study the finished diagram and notice how both narrow hutches sit flush with the main hutch.

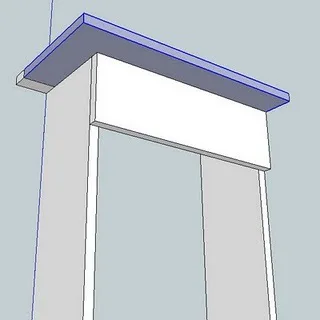

Step 4

Add E, the large top piece, lining edges up with D from above. Nail into the edges of A and into the header board, C.

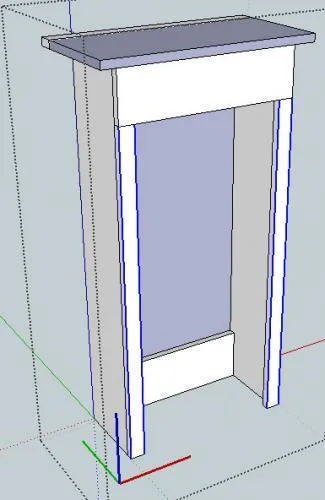

Step 5

Step 6

Add the beadboard to the back.

Step 7

Add the crown moulding to the front and the side wher the top overhangs. Keep flush on the opposite side. When I do crown moulding, I like to start with the front piece, then cut the side pieces long, then trim the square ends of the side pieces down to get a perfect fit.

Step 8

Fill all nail holes with putty, sand and finish all pieces as desired, including the 2 remaining shelves, G. When the piece is finished, add shelf support brackets where you would like the shelves to be placed.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
