Side Base Cabinets (Rebecca Media Suite)
Build your own media wall with our Rebecca Media Suite collection of plans. In this plan, you can build your own side cabinets, shown on either side of the center console plans. Adjust the width to fit your space and needs. Our step by step plans with full diagrams make it easy.

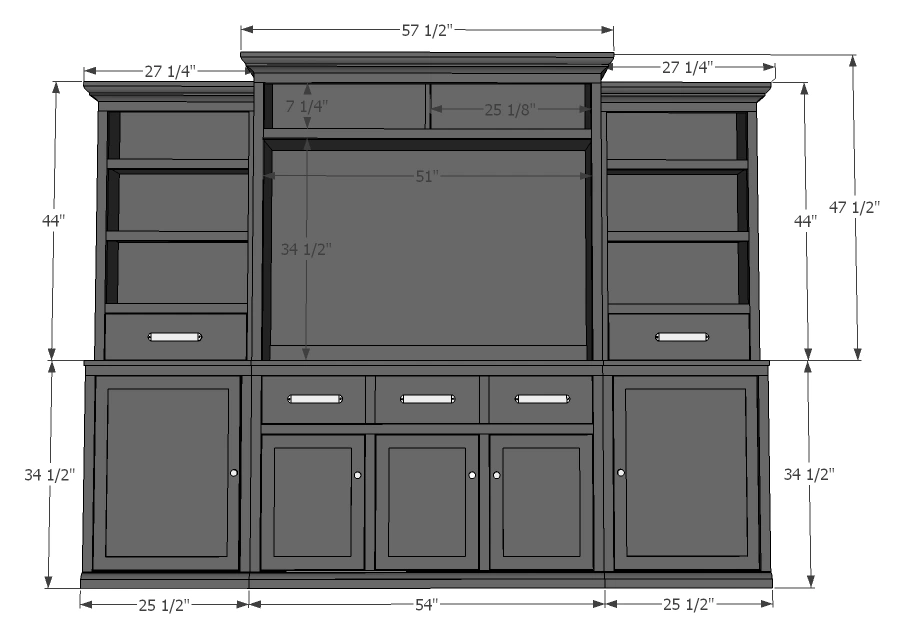

Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 1- sheet 3/4" plywood
- 1- sheet 1/4" plywood
- 4- 8ft 1x2's
- 3- 8ft 1x3's
- 52" of 2" tall base molding
- 3/4" Plywood
- 4 @ 11 3/4" x 33 3/4"
- 2 @ 11 3/4" x 25 1/2"
- 2 @ 11/3/4" x 24"
- 1/4" Plywood
- 2 @ 25 1/2" x 34 1/2"
- 2 @ 18 1/4" x 25 1/2" (these are your door fronts, your measurements might be different)
- 1x2's
- 2 @ 32 1/4"
- 4 @ 25 1/2" (These are your door frames cut for a mitered angle. Your measurements will be different if you are doing a butt joint)
- 4 @ 24" (These are your door frames cut for a mitered angle. Your measurements will be different if you are doing a butt joint)
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- table saw
- nailer
- sander
- level
Step by step

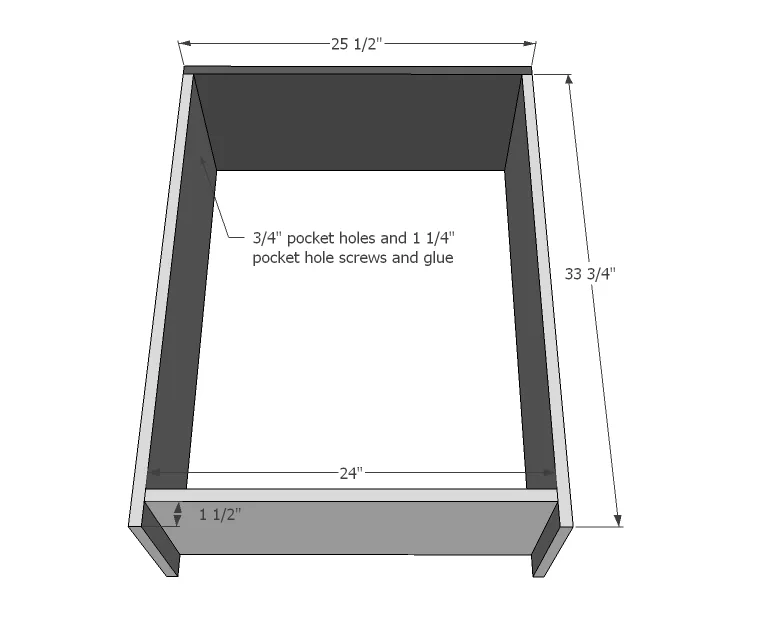

Step 1
Build the box.

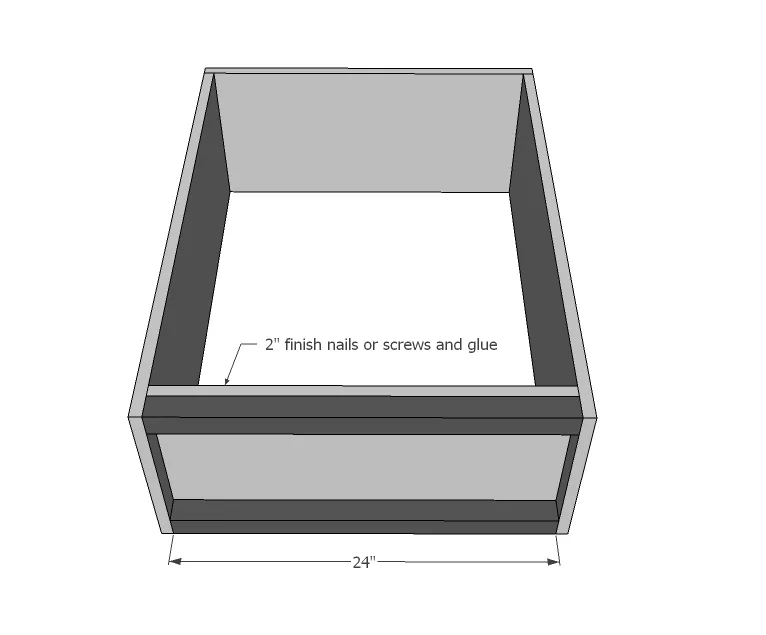

Step 2
Add bottom supports.

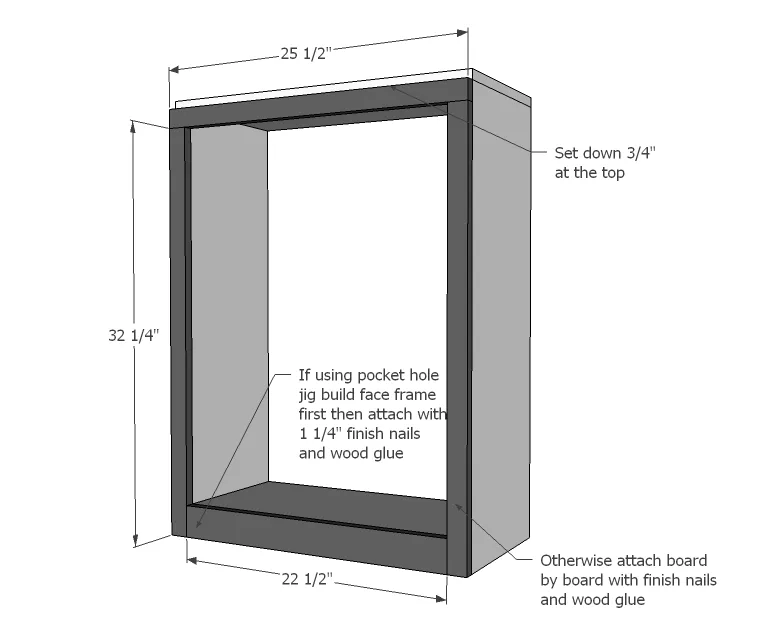

Step 3
If you have a pocket hole jig, build face frame first and attach with finish nails and glue.

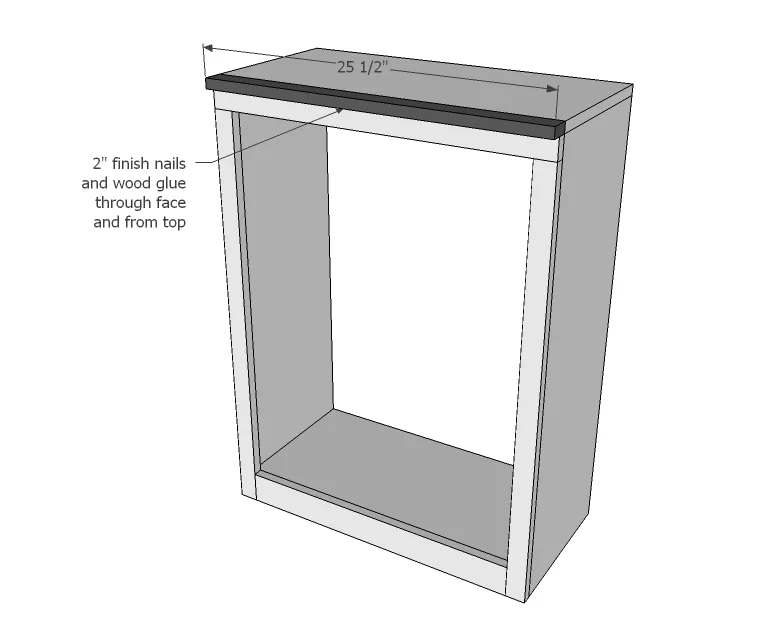

Step 4
Then add top header.

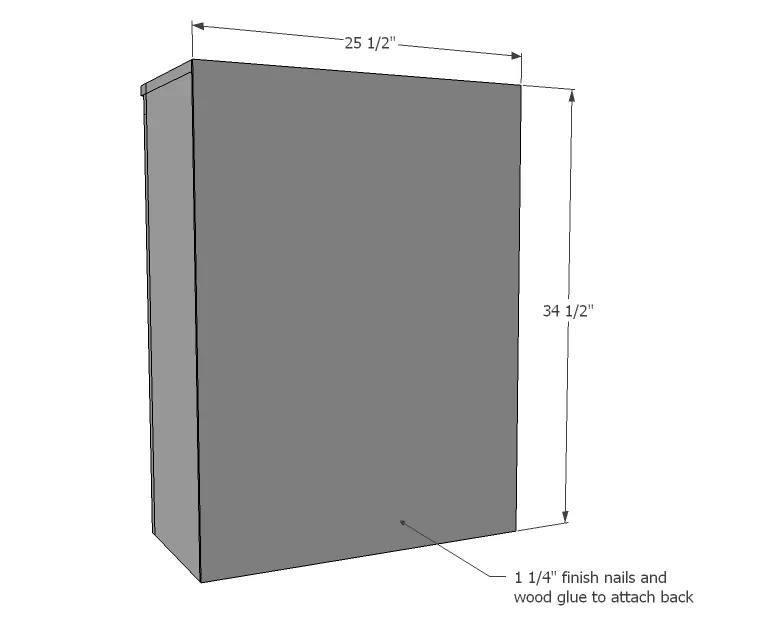

Step 5

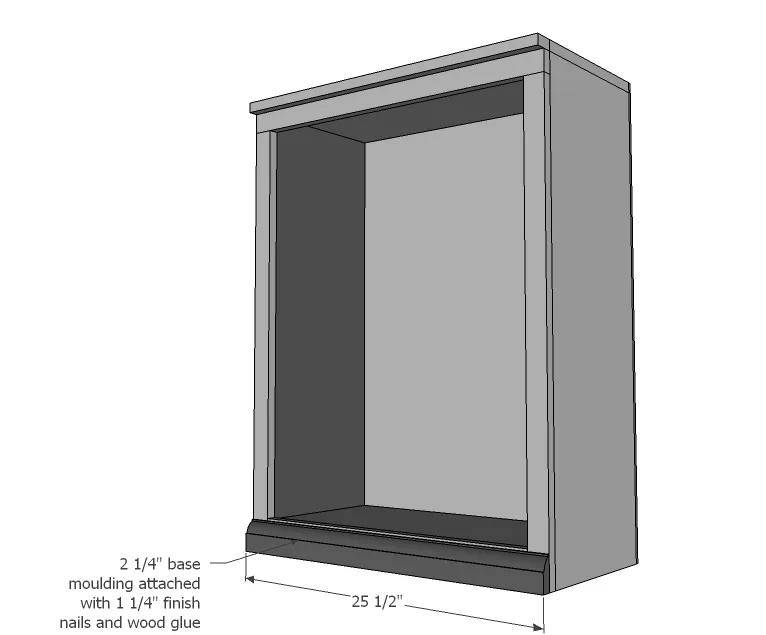

Step 6
Add moulding to front.

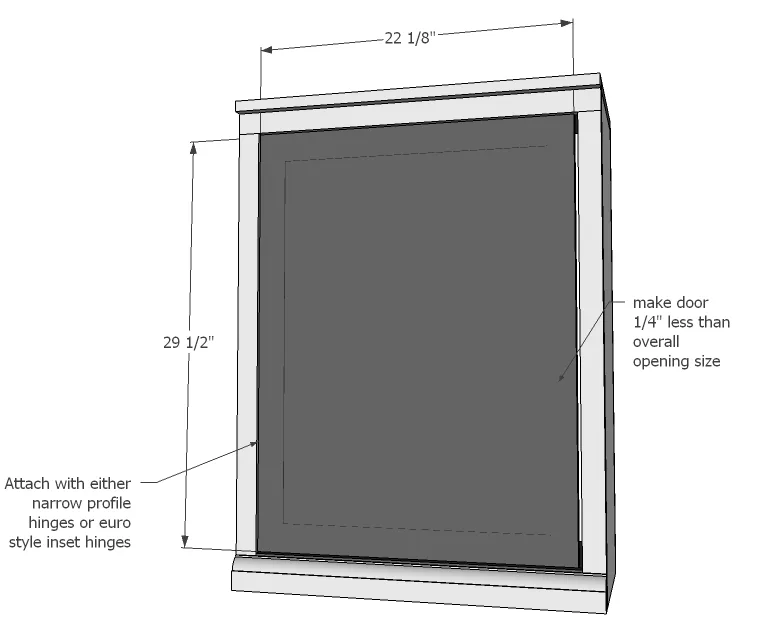

Step 7
And finally the doors!
Step 8
Rebecca was kind enough to put together a cutting layout too.
Step 9
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
