How to Build a Swing Set for the Playhouse!
A swing set plan add on that extends from our playhouse! This swing set can also be used freestanding, without a playhouse.
Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 2 – 12′ 4×4 Posts
- 1 – 12′ 4×6 Post
- 1 – 8′ 4×6 Post
- 2 – 8′ 2×4
- 16 7″ Bolts, washers and Nuts
- 1 – 4×6 rafter post hangers
- 2 – 4×4 post cap/bases
- Eye bolts
- 2 – 4×4 Posts @ 127 3/4″ (Legs)
- 2 – 2×4 @ 18″ (Top Supports)
- 2 – 2×4 @ 78″ (Bottom Supports)
- 1 – 4×6 Post @ 12′ (Swing Header)
- 1 – 4×6 Post @ 8′ (Porch Header)
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- drill
- circular saw
- sander
- level
Step by step

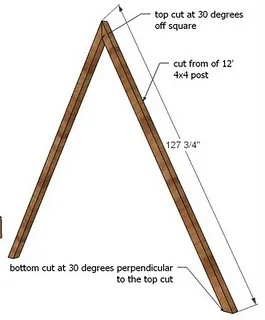

Step 1
LEGS Cut the 4×4 posts as shown above. Lay out on a flat and level surface.

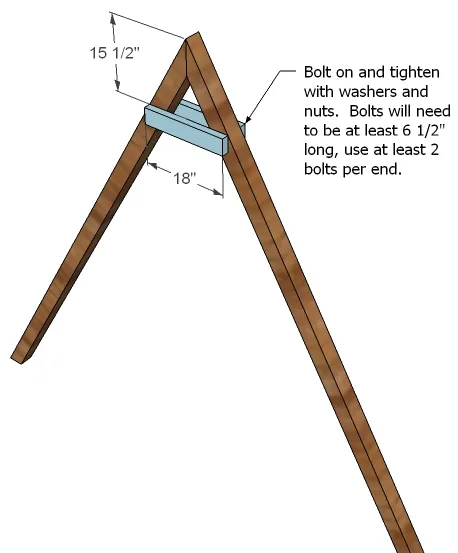

Step 2
TOP SUPPORTS Use bolts to attach the top supports as shown above to the legs. You will need to drill a hole the size of the bolt shaft first and then insert your bolt.

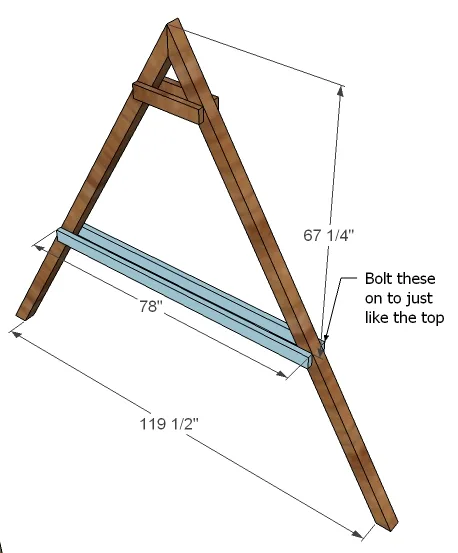

Step 3
BOTTOM SUPPORTS Attach the bottom supports as shown above.

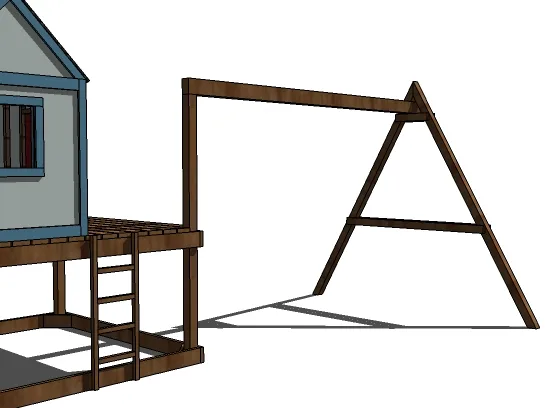

Step 4
ASSEMBLY Assemble the swing set as shown above. Use lag screws or bolts to attach the brackets. The swing set does not have to be mounted to the center of the front porch. Make sure the header is level and if needed, dig with the shovel under the legs until the swing set header is level.
Step 5
If you feel the swing set needs it, add cross bracing from the top board into the angled legs.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
