Folding Desktop Chalkboard Easel

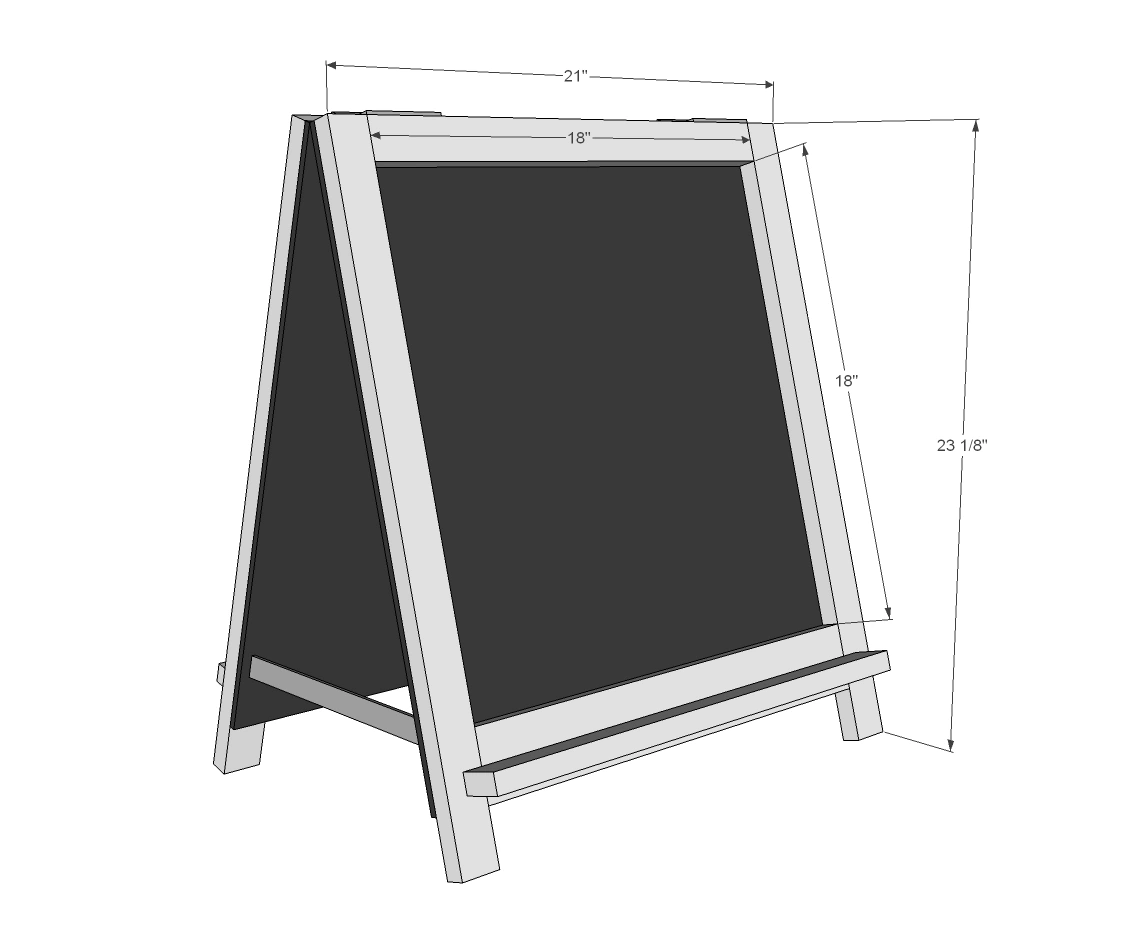

Dimensions

Use the size-specific shopping and cut lists below.

Step by step

01

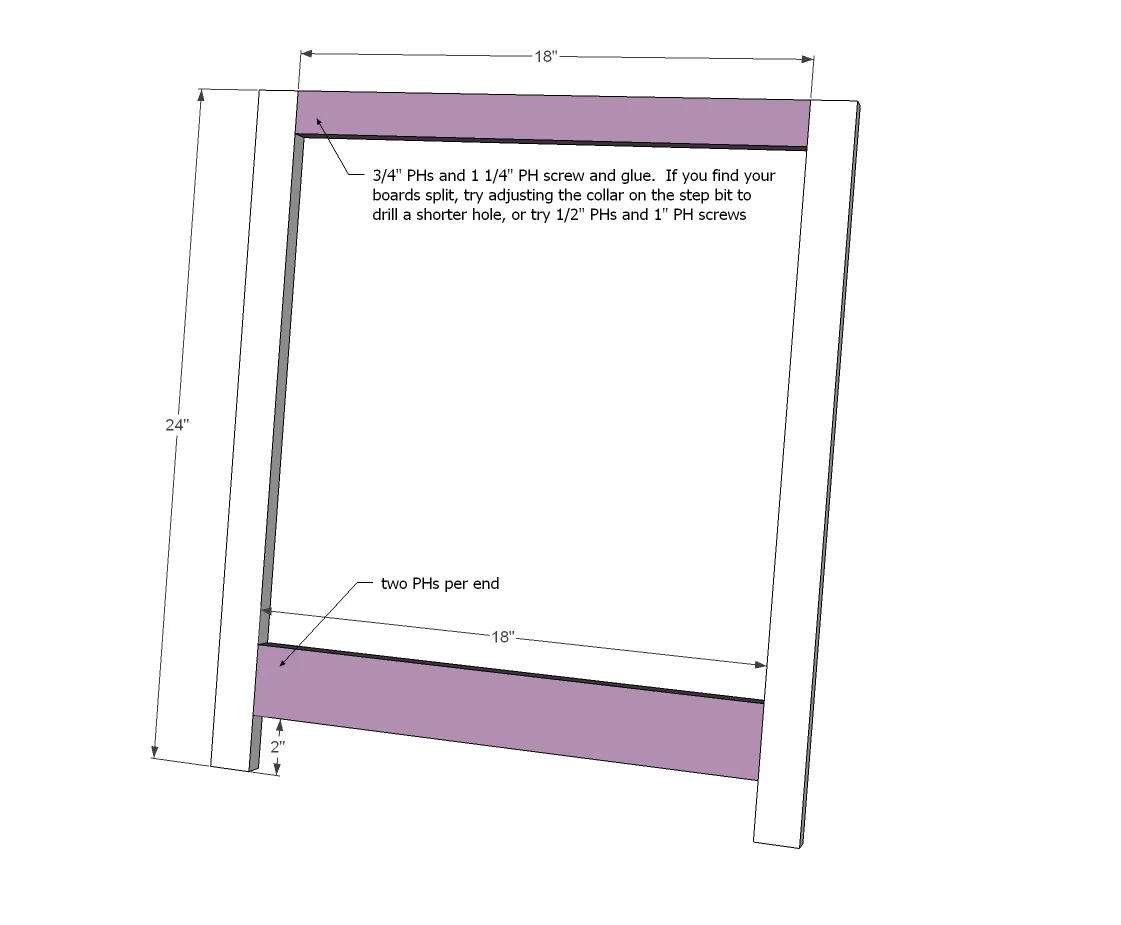

Step 1

Start by simply building two frames as shown here. I definitely recommend a pocket hole jig for attaching edge to edge like this. An alternative is to glue the frames and let dry. Then use the back plywood later to secure the joint with screws or nails.

02

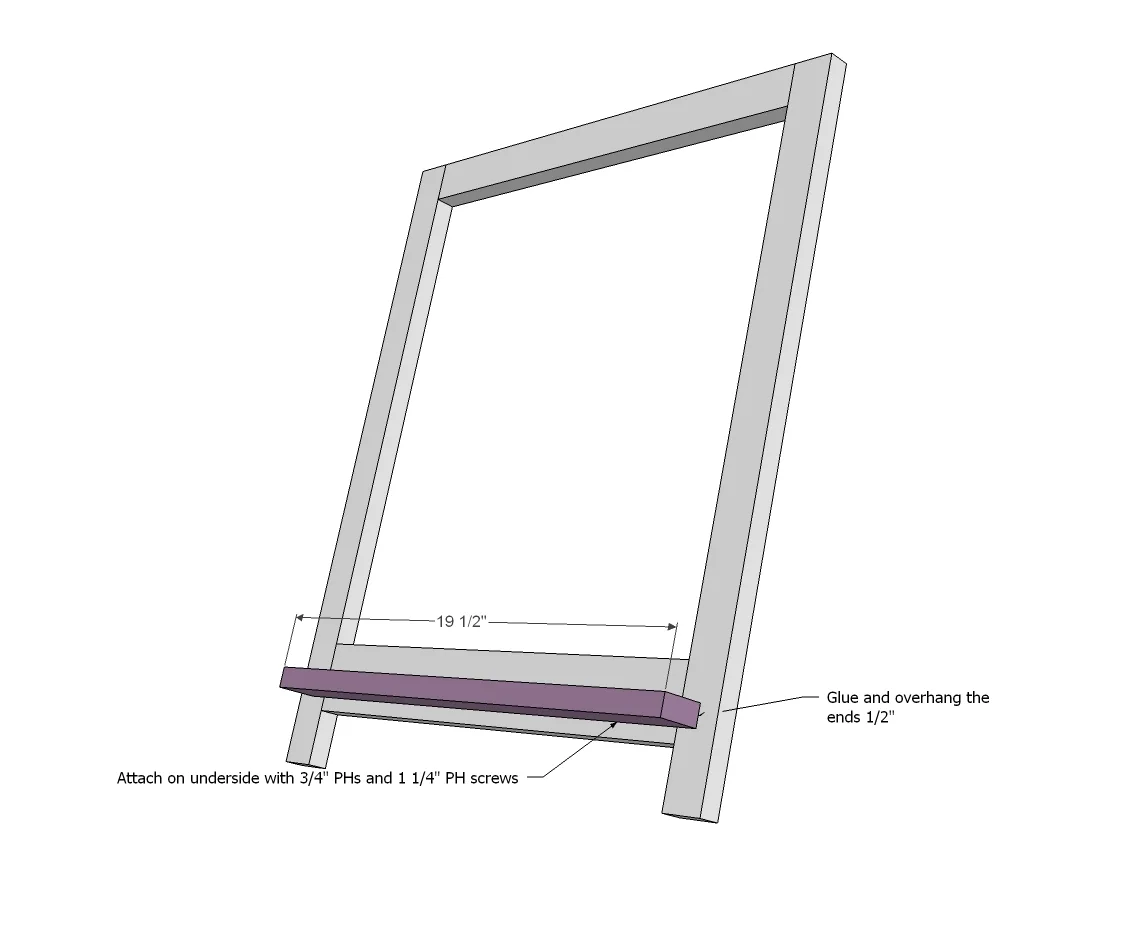

Step 2

Jaime recommends attaching the ledge with a countersunk screw from the back for the best joint.

03

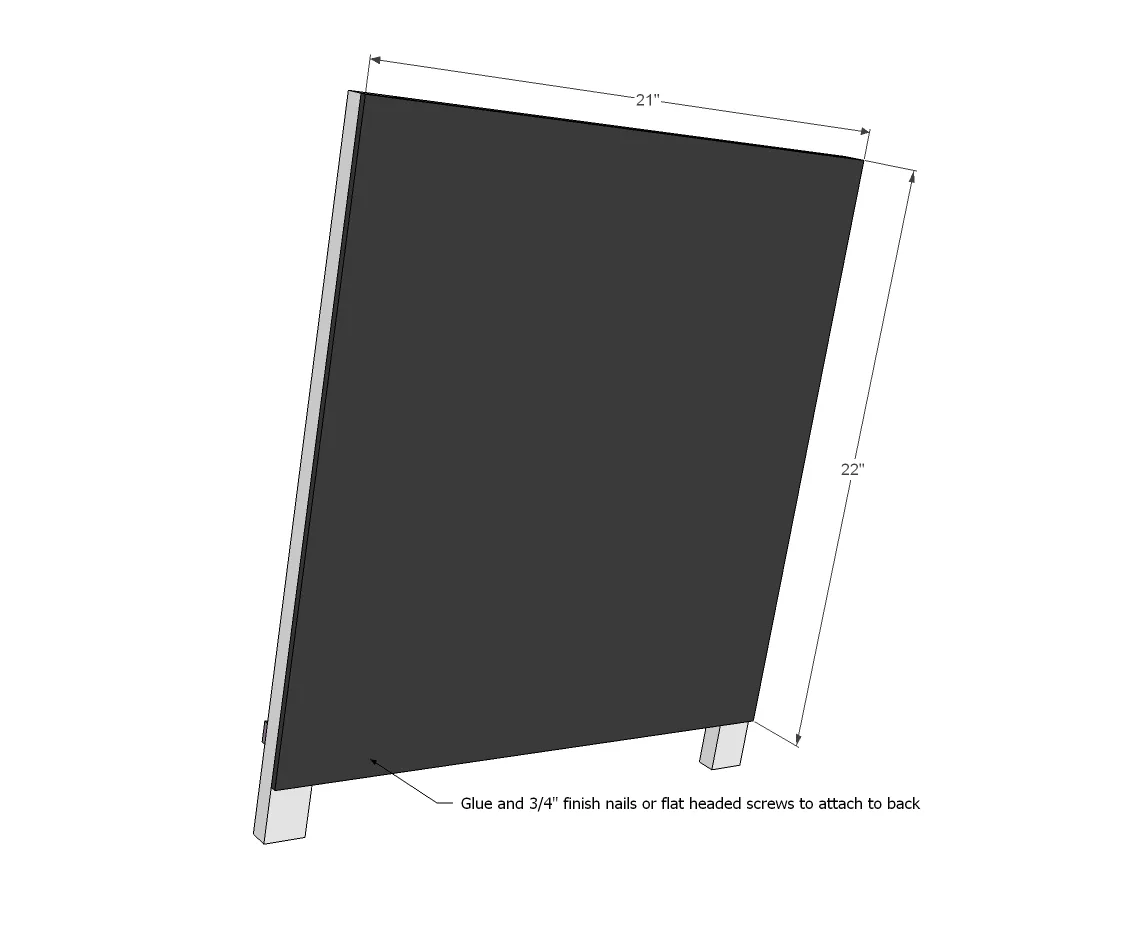

Step 3

Paint your hardboard first with chalkboard paint and fit to back of frames. It may be easier to paint your frames before attaching the chalkboard backs to them.

04

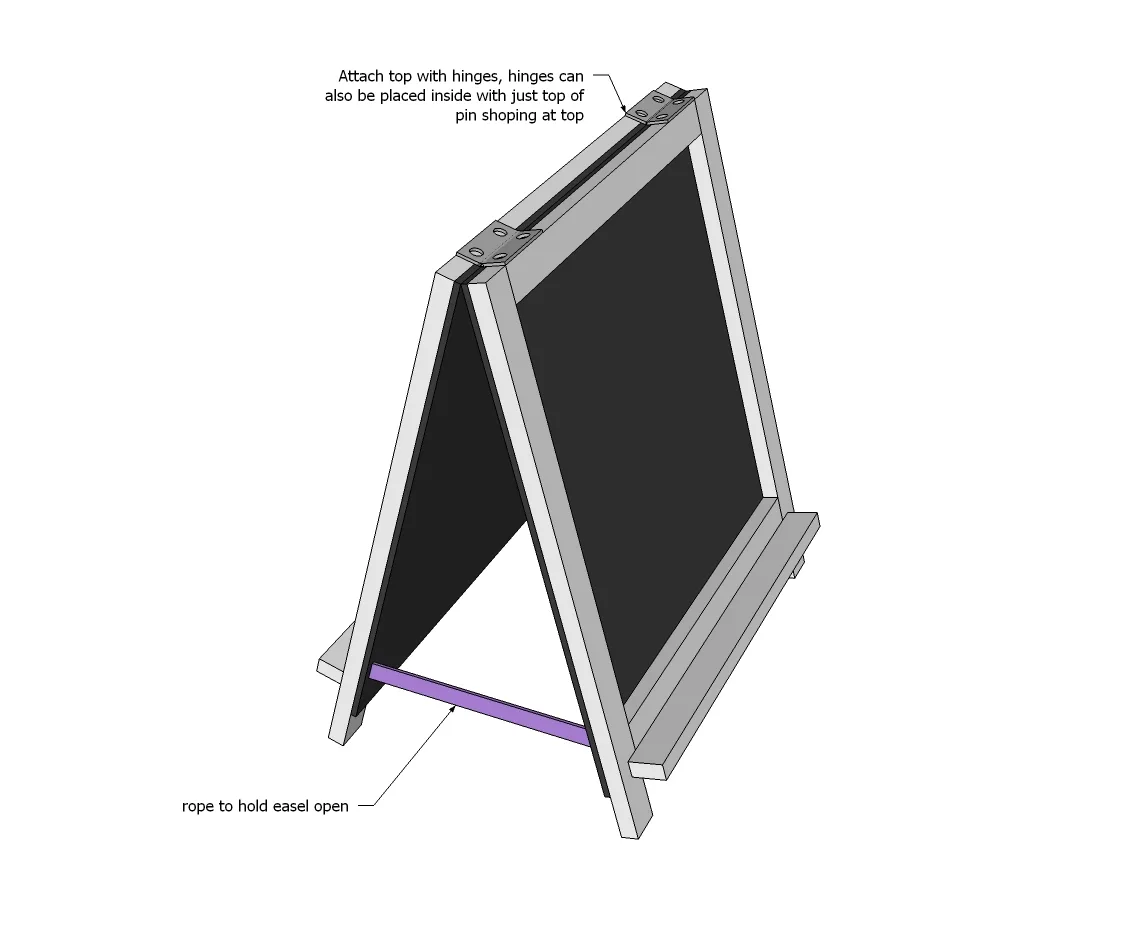

Step 4

Now just hinge the two frames together with hinges at top. Then add a rope to bottoms to keep the easel open when open, and a handle to the top for easy carrying.

05

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
