Floating Shoe Display Rack

Easy to build floating shoe rack with angled shelves for more compact shoe placement. Easy to build!

Dimensions

Use the size-specific shopping and cut lists below.

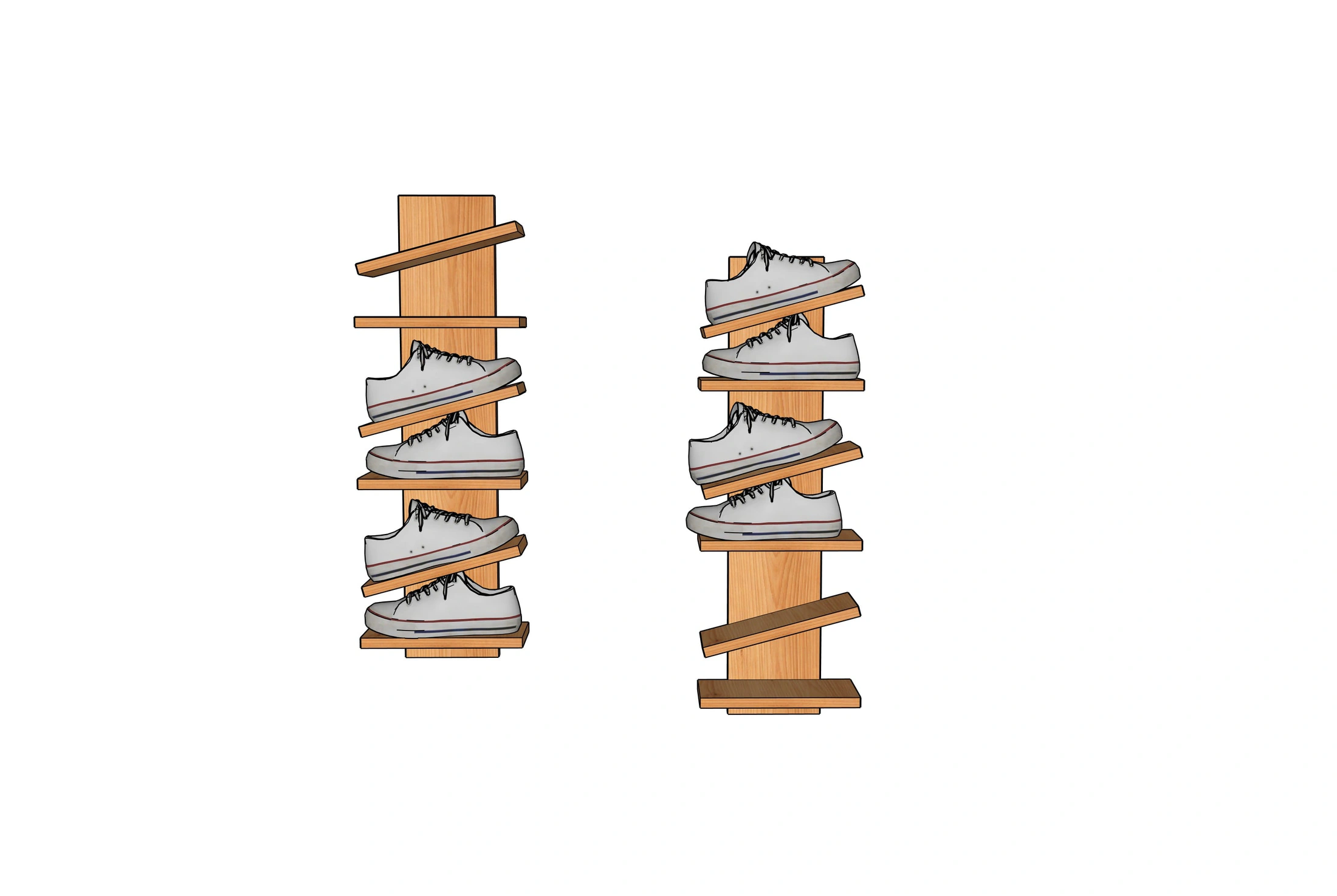

Floating Shoe Display Rack dimension diagram 1

What you need

Per Shoe Rack:

1 - 1x8 @ 3 feet long
1 - 1x6 @ 6 feet long
12 - 1-1/4" pocket hole screws
pocket hole screw plugs
sandpaper
wood finishing supplies
2-3/4" self tapping screws for hanging or heavy duty hanging hardware
For Two Shoe Racks
1 - 1x8 @ 6 feet long
2 - 1x6 @ 6 feet long
12 - 1-1/4" pocket hole screws
pocket hole screw plugs
sandpaper
wood finishing supplies
2-3/4" self tapping screws for hanging or heavy duty hanging hardware

Step by step

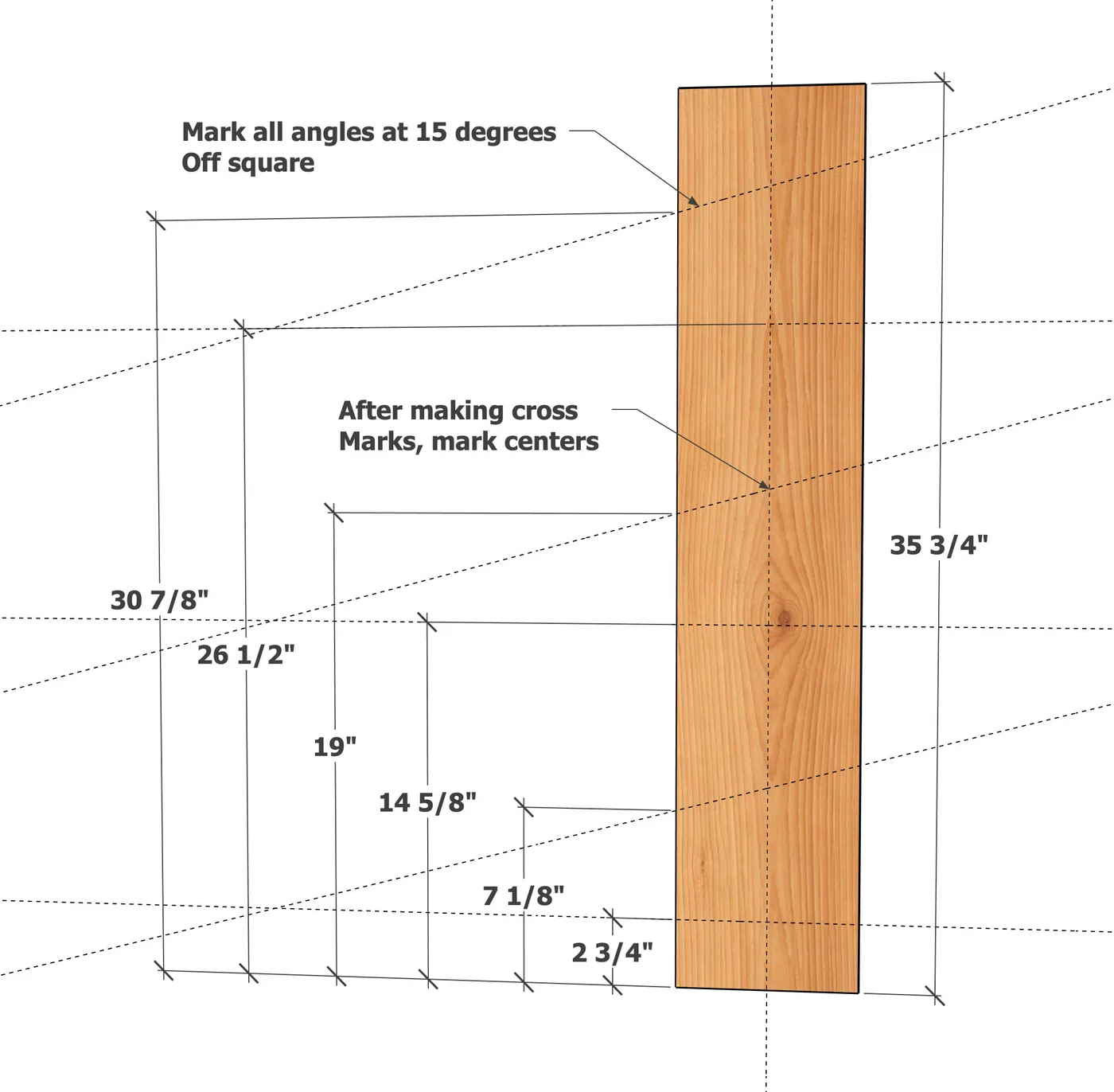

Step 1

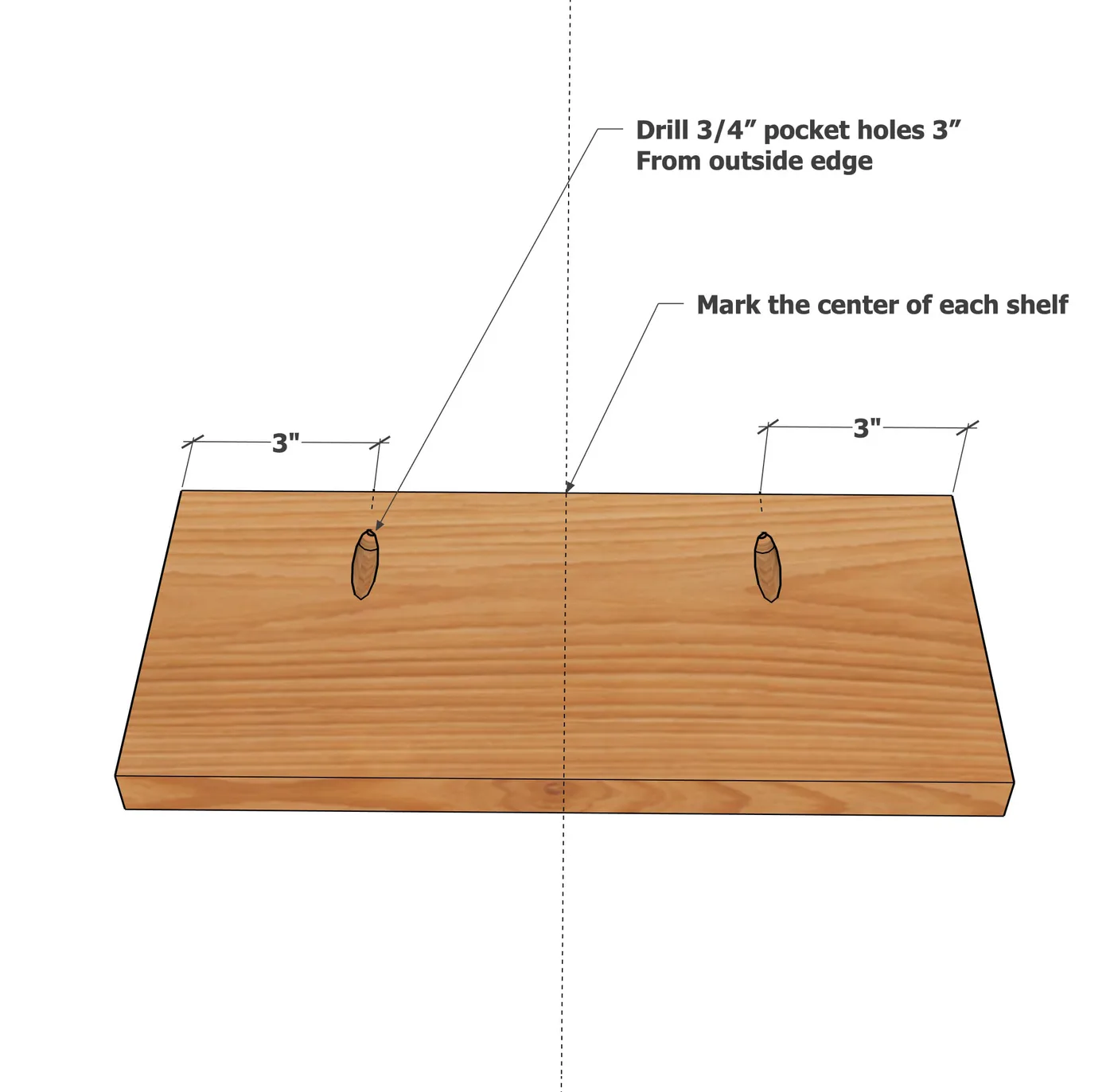

Step 2

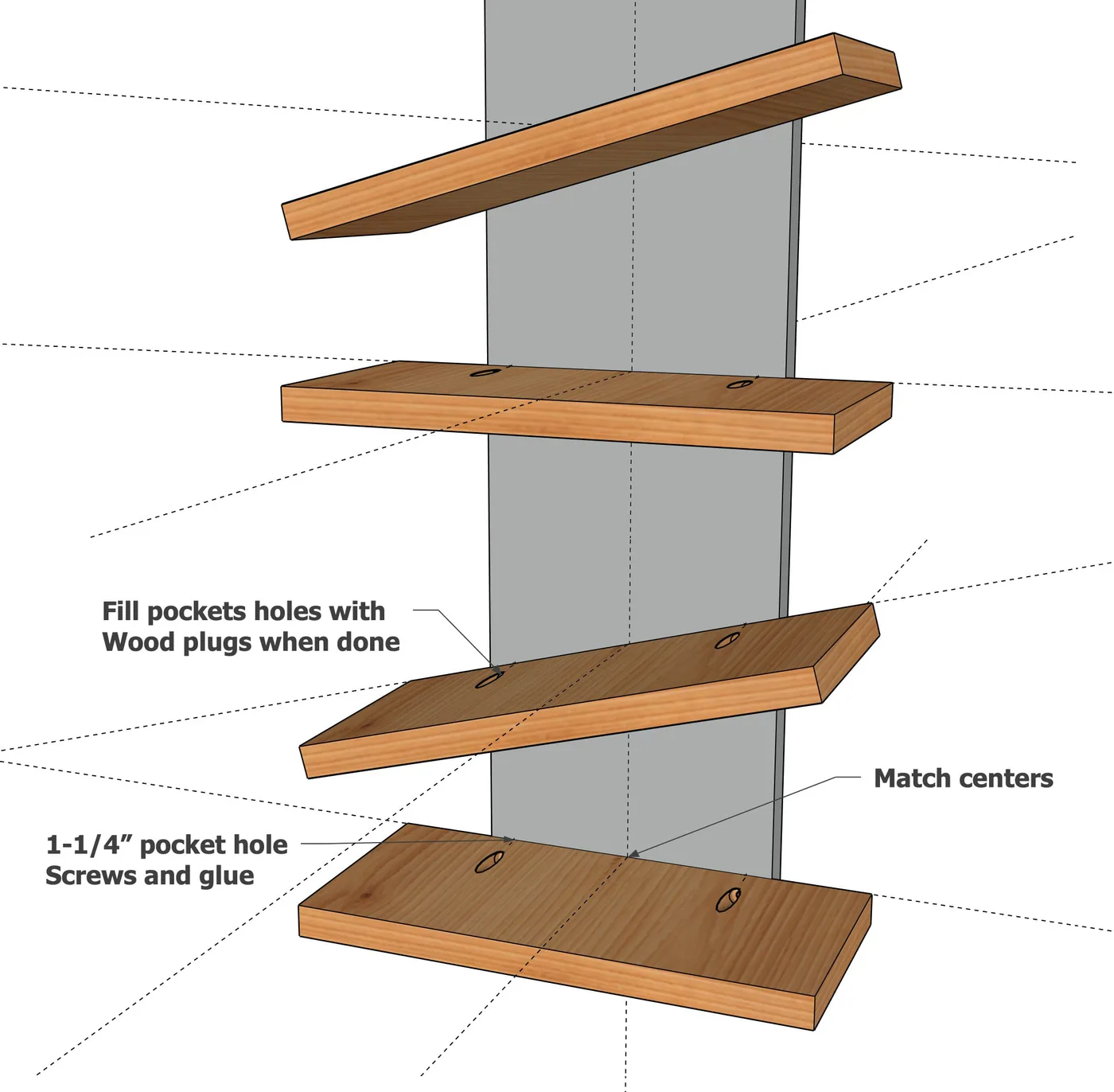

Step 3

Step 4

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
