Chunky Leg Side Table

Simple to build end table or side table with a modern flair! Free DIY.

Chunky Leg Side Table

Dimensions

Use the size-specific shopping and cut lists below.

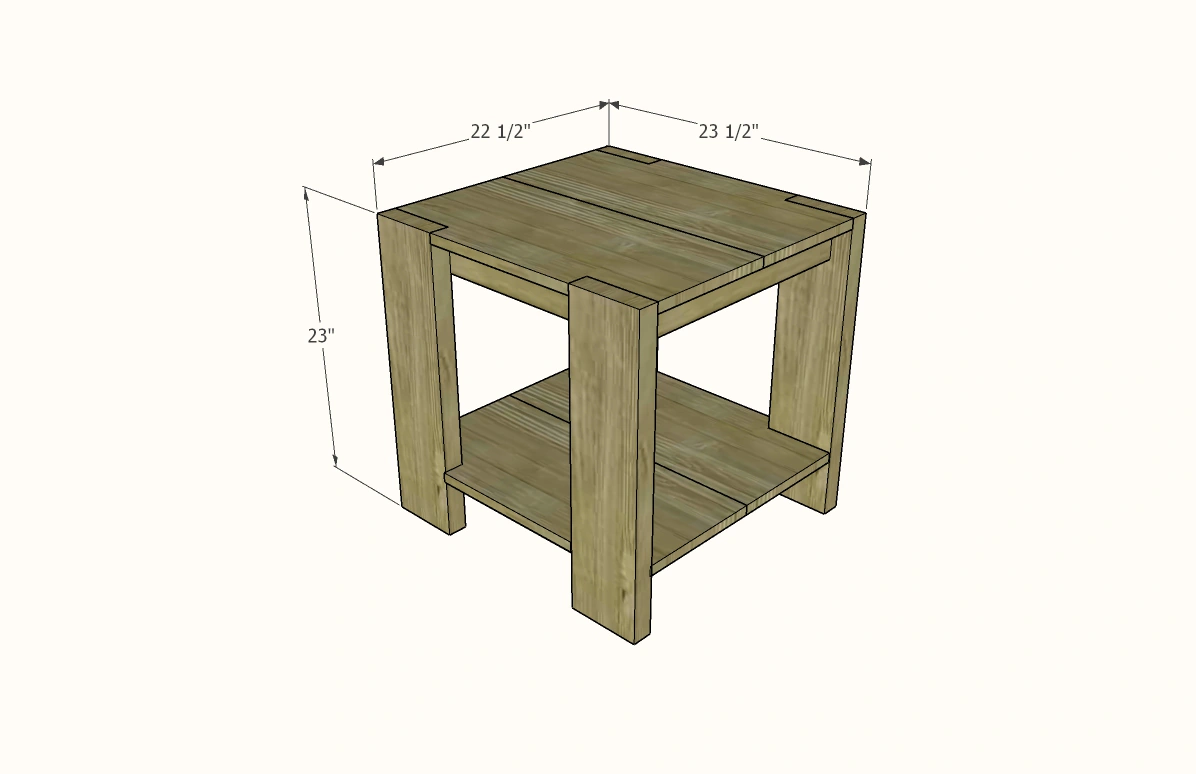

Chunky Leg Side Table dimension diagram 1

What you need

  • 1 - 1x12 @ 8 feet long
  • 1 - 2x6 @ 8 feet long
  • 1 - 1x3 @ 8 feet long
  • 2 - 1x2 @ 8 feet long
  • 1-1/4" brad nails
  • 16 - 2" long self tapping wood screws with star bit (SPAX or similar)
  • wood glue
  • 120 and 150 grit sand paper
  • paint or stain

Step by step

01

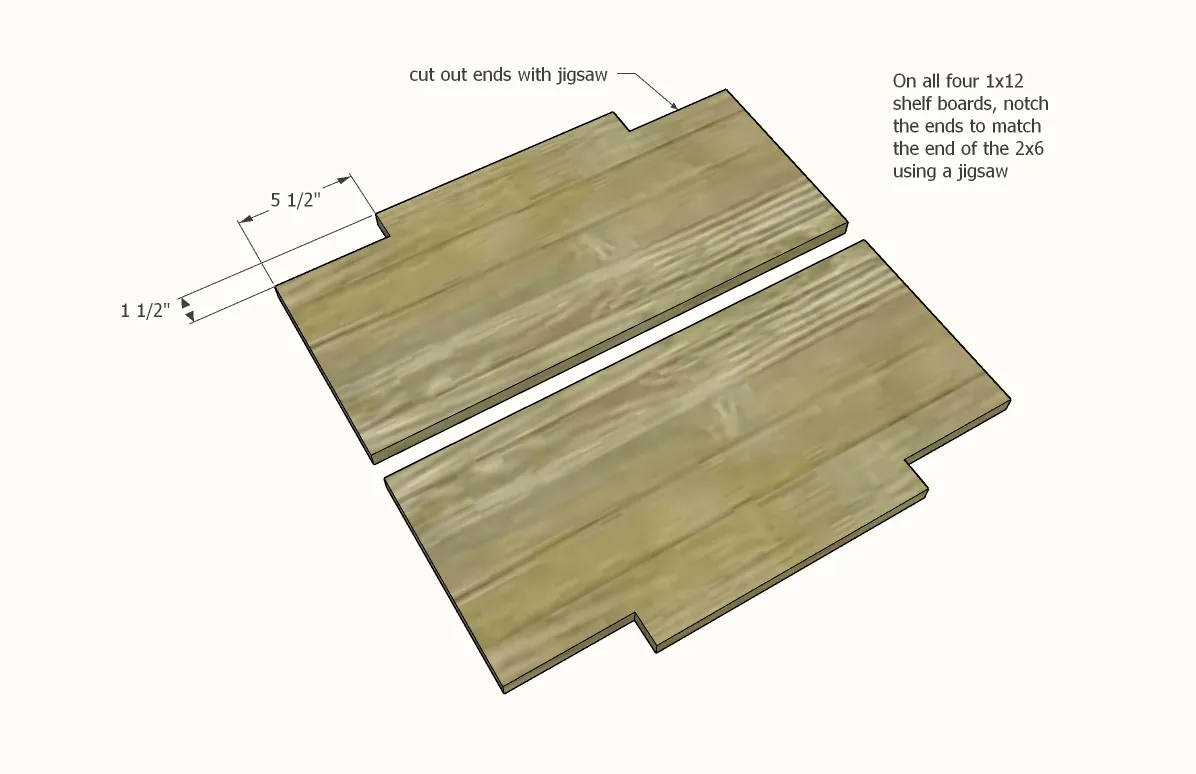

Measure the ends of your 2x6 legs - it should measure 1-1/2" x 5-1/2"

Mark out on all four 1x12 boards, and cut out with a jigsaw.

Chunky Leg Side Table, step 1
02

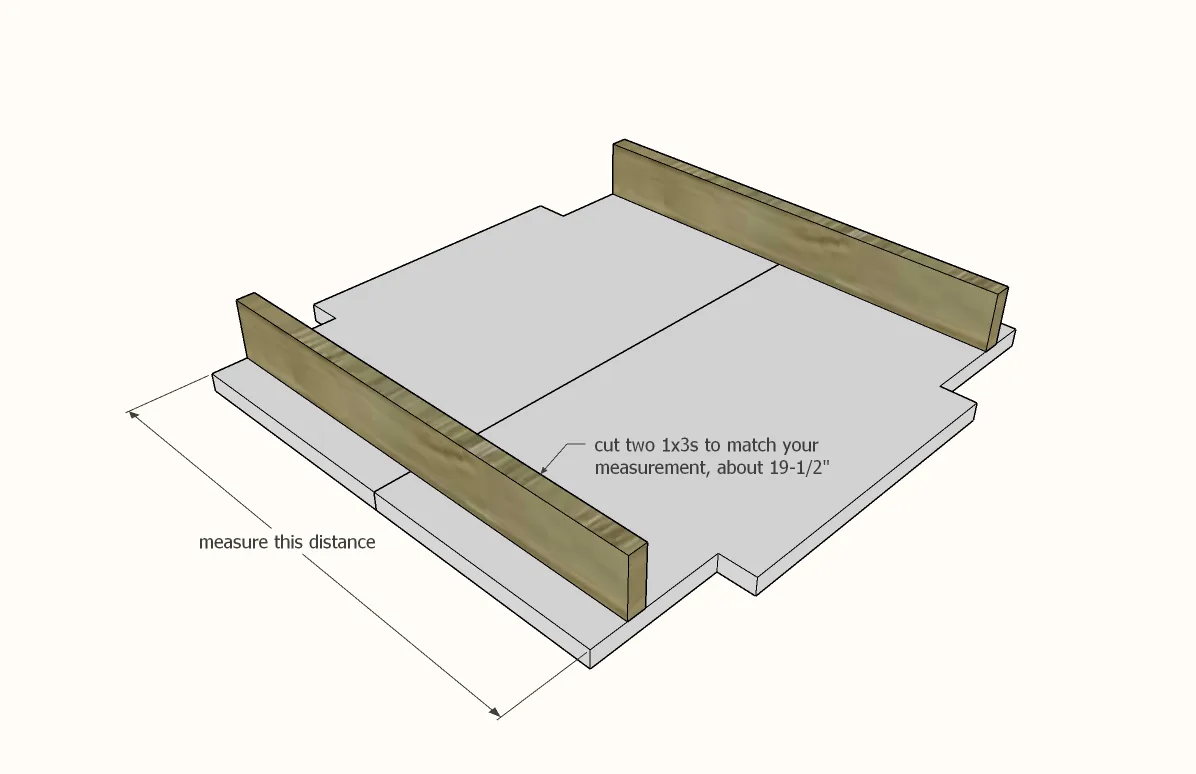

Place the cut 1x12s together and measure in between the cuts. It should be about 19-1/2".

Cut two 1x3s to this measurement.

Chunky Leg Side Table, step 2
03

Step 3

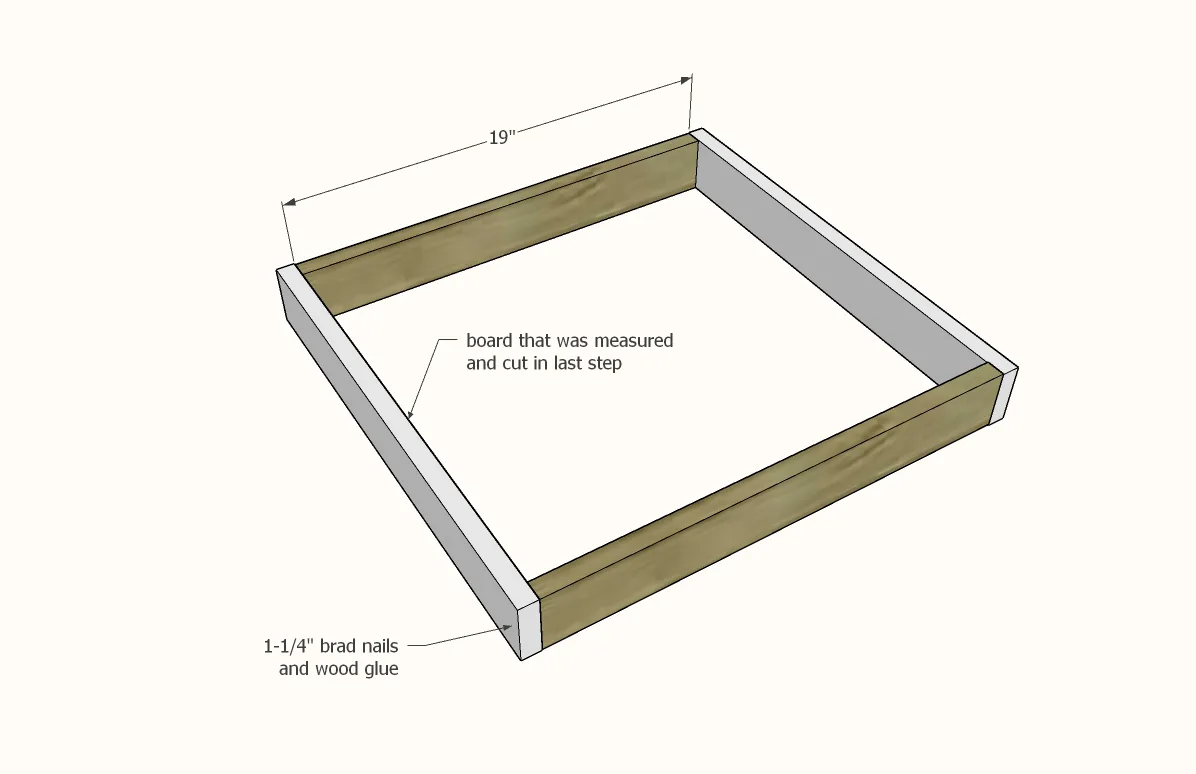

Using the 1x3s cut in the last step and the two 1x3 boards at 19" from the cut list, nail together the 1x3s into a frame.

Chunky Leg Side Table, step 3
04

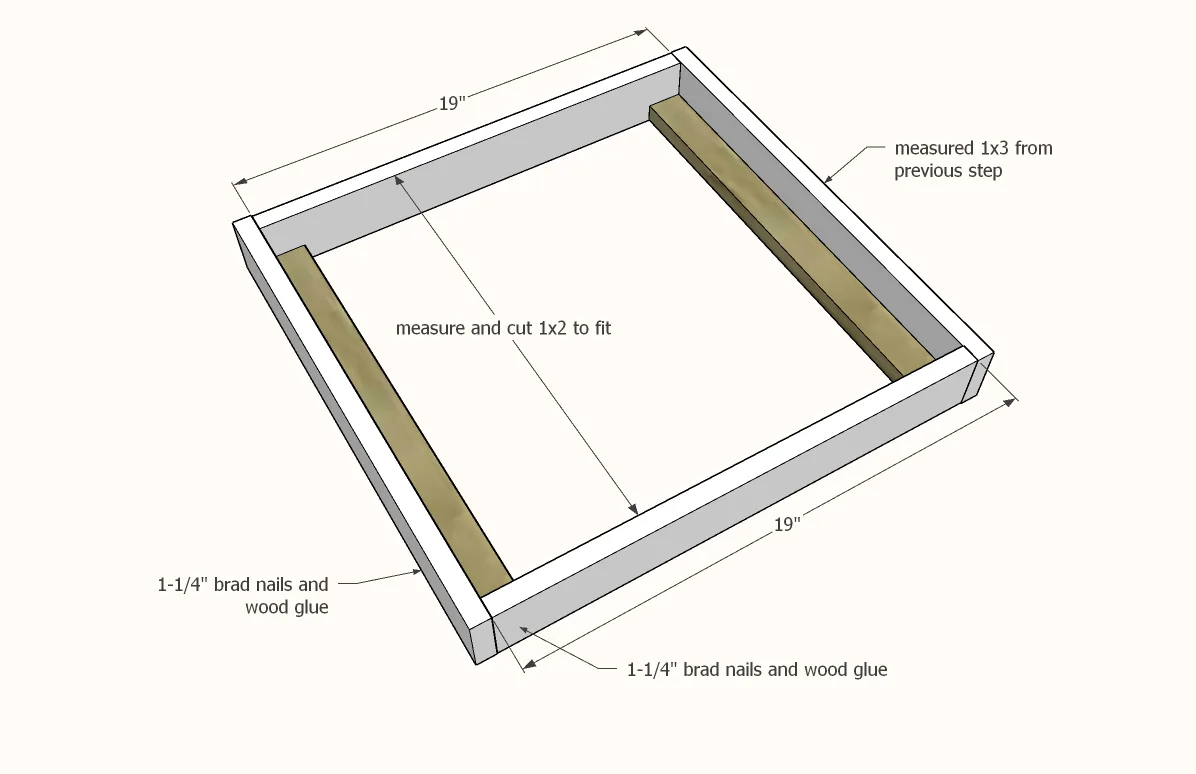

Measure the inside as shown and cut a 1x2 to fit.

Nail and glue inside the frame, flush to the bottom.

Chunky Leg Side Table, step 4
05

Step 5

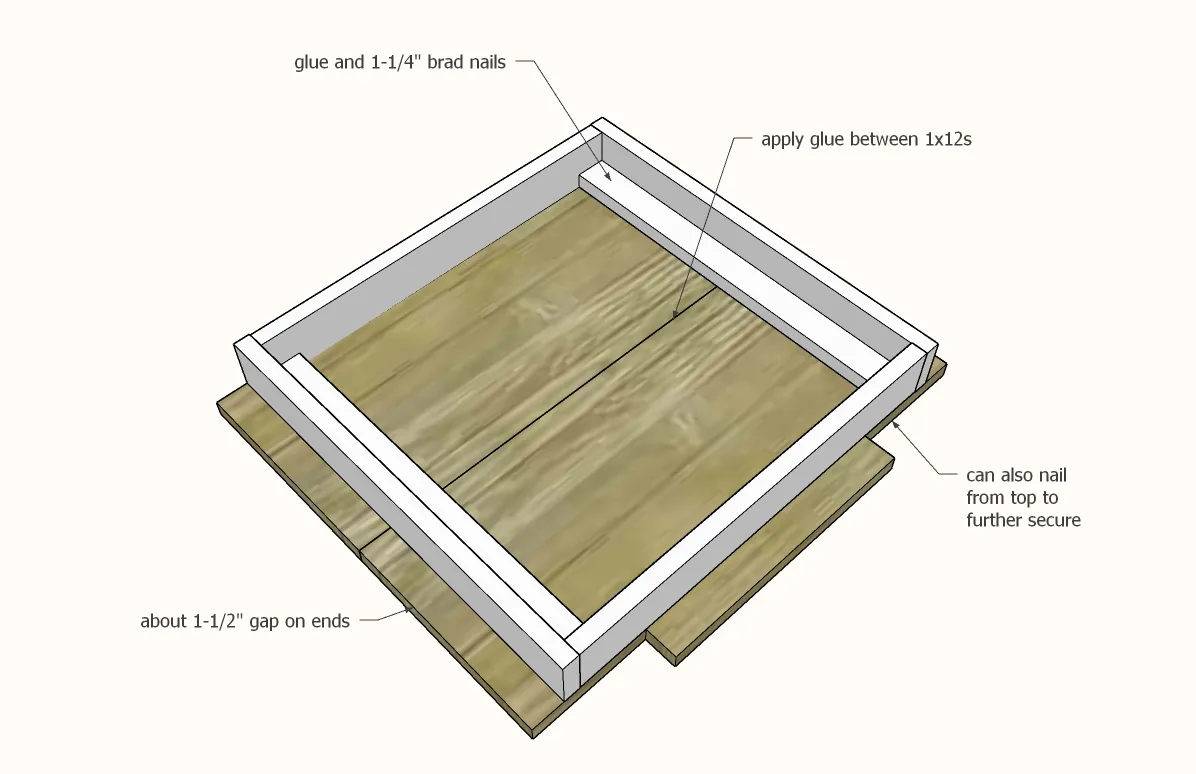

Apply glue between your 1x12 boards. If you have a Kreg Jig, attach the 1x12 boards together with 1-1/4" pocket hole screws. Apply glue to bottom edges of the frame and position on the 1x12s. Attach with 1-1/4" brad nails and glue. Also attach from top along edge that wasn't nailed.

Chunky Leg Side Table, step 5
06

Step 6

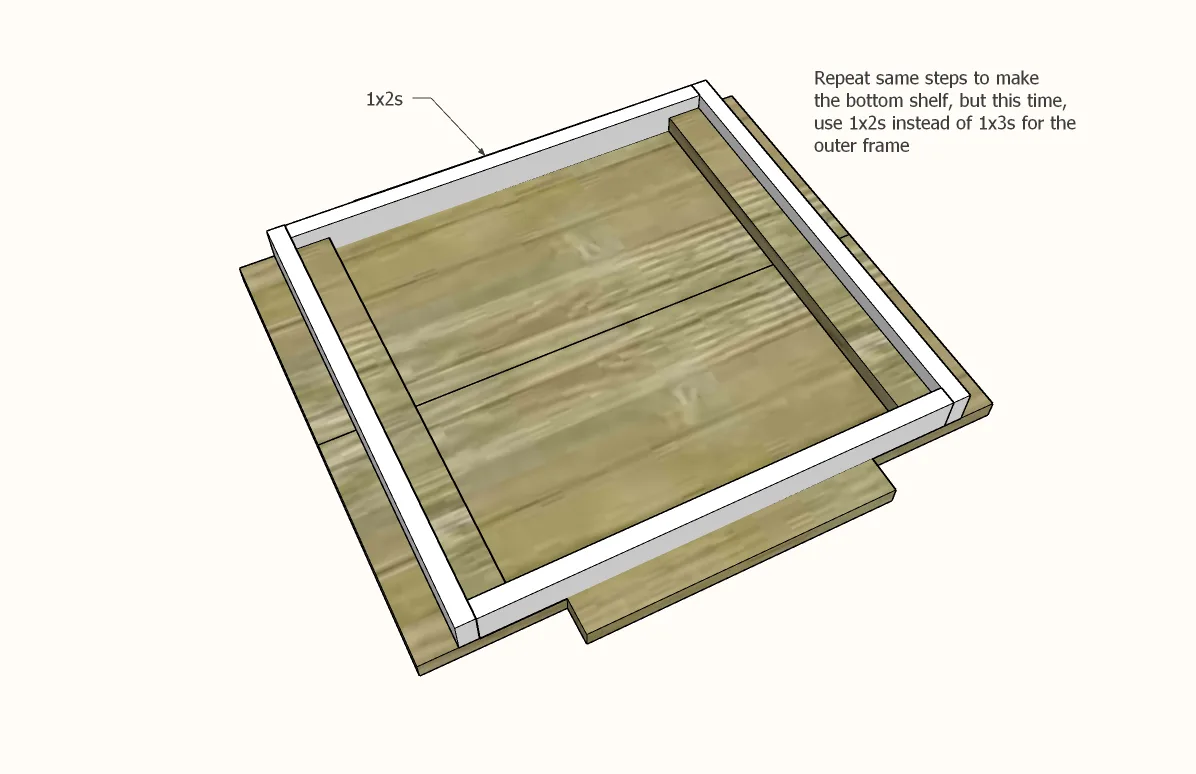

Repeat steps 1-5, but for the bottom shelf using a 1x2 frame instead of a 1x3 frame.

Chunky Leg Side Table, step 6
07

Place the top shelf (1x3 frame) face down on a flat level surface.

Attach from inside with 2" screws at a slight angle. TIP: I only did one screw at first per leg, so that I could maneuver the legs somewhat while fitting the shelf in. After I was happy with the bottom shelf and the table sitting square, I then added the second screws.

Chunky Leg Side Table, step 7
08

Step 8

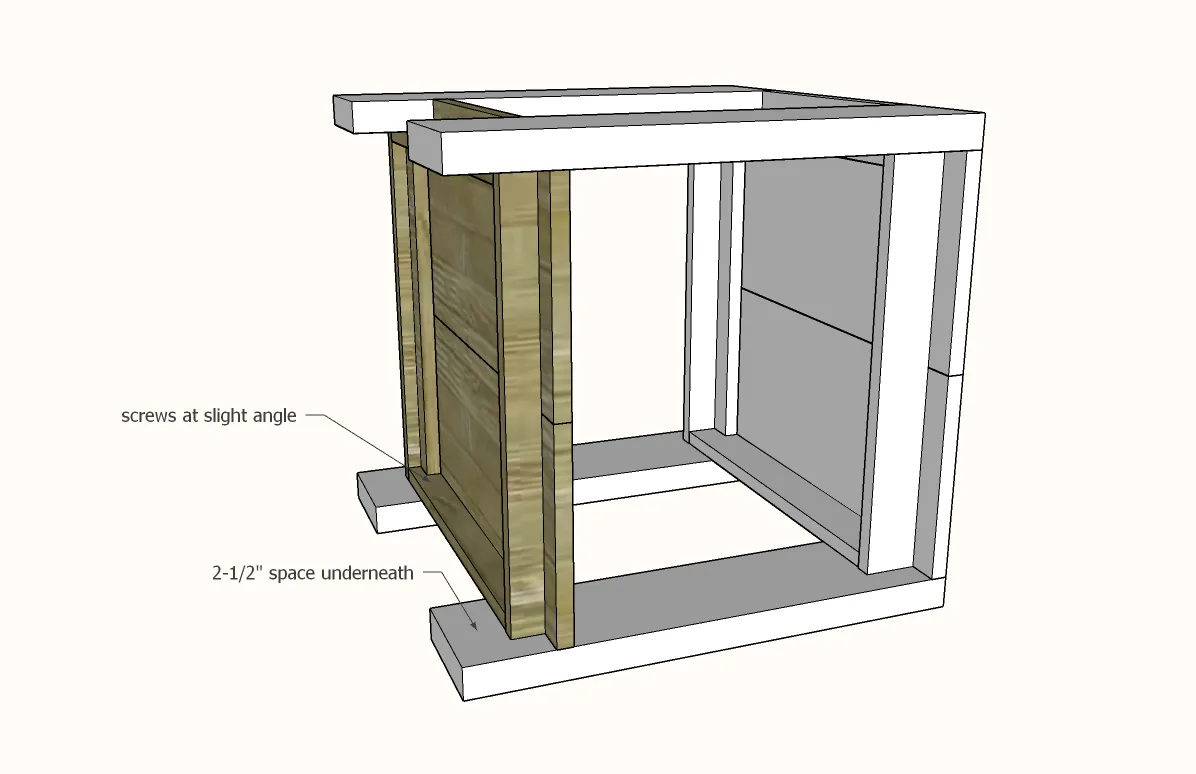

Add bottom shelf inside the legs. I used a scrap 1x3 to space the bottom shelf up 2-1/2" on the legs.

Chunky Leg Side Table, step 8
09

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
