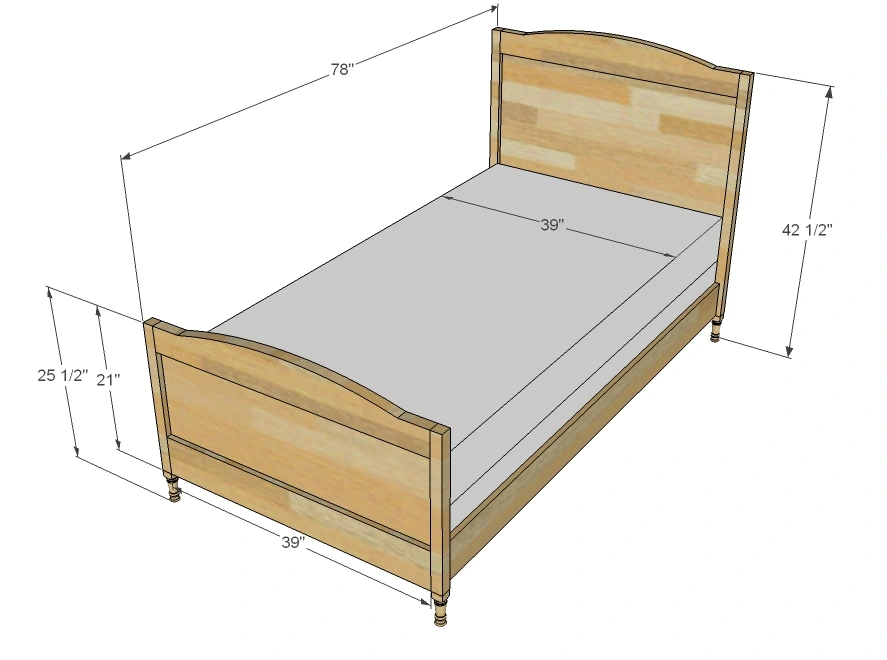

Chelsea Twin Bed or Bottom Bunk

Step 1

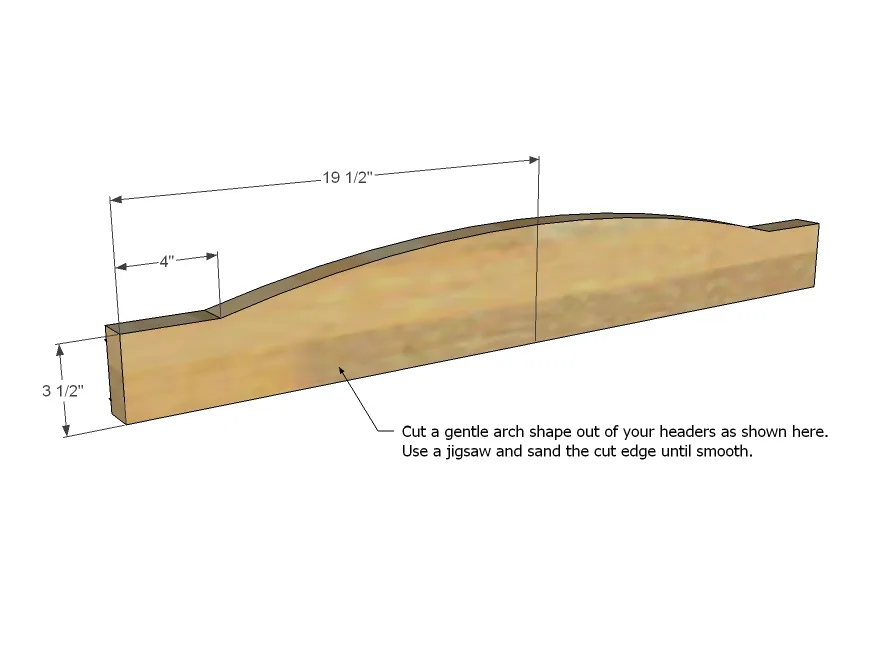

Cut your headers. Now this is going to be easier said than done, since we are using 2x6 headers and a jigsaw. Test out your jigsaw cuts first on a scrap. When you are satisfied, carefully cut out the headers as shown above. Sand the finished edge with a sander until smooth.

Step 2

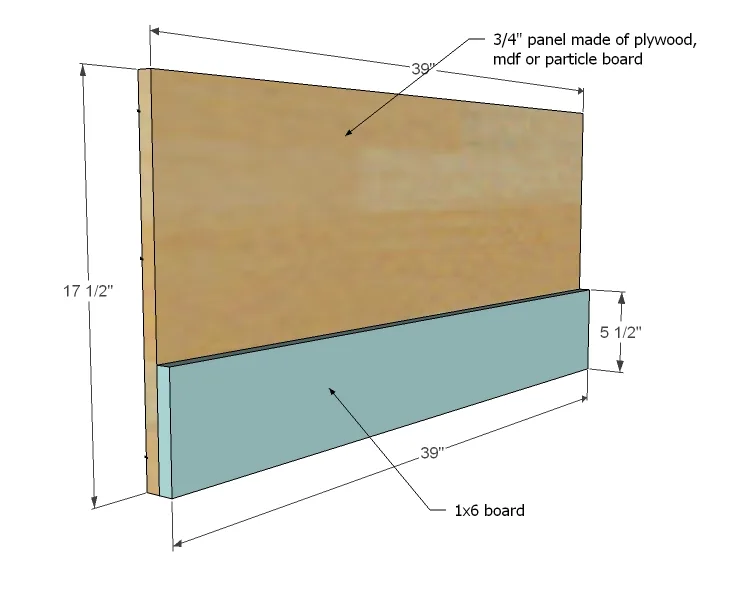

On you footboard panel (and headboard to in a minute) attach the 1x6 base to the panel with 1 1/4" finish nails and glue.

Step 3

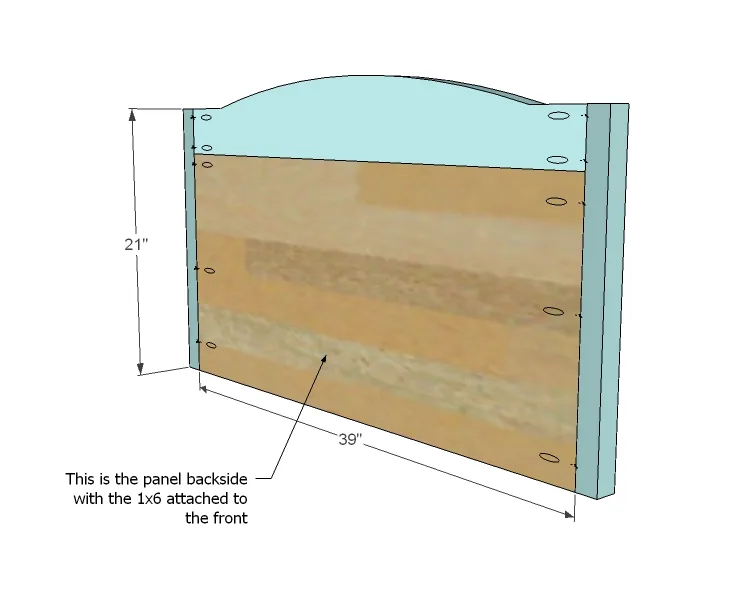

Now attach the 2x2 legs to the panel and header as shown in the diagram. I recommend pocket holes, set for 3/4" stock and 1 1/4" pocket hole screws, but this joint is not a high stress joint - the weight goes from the siderails to the legs and down - so you could use glue and 3" screws countersunk.

Step 4

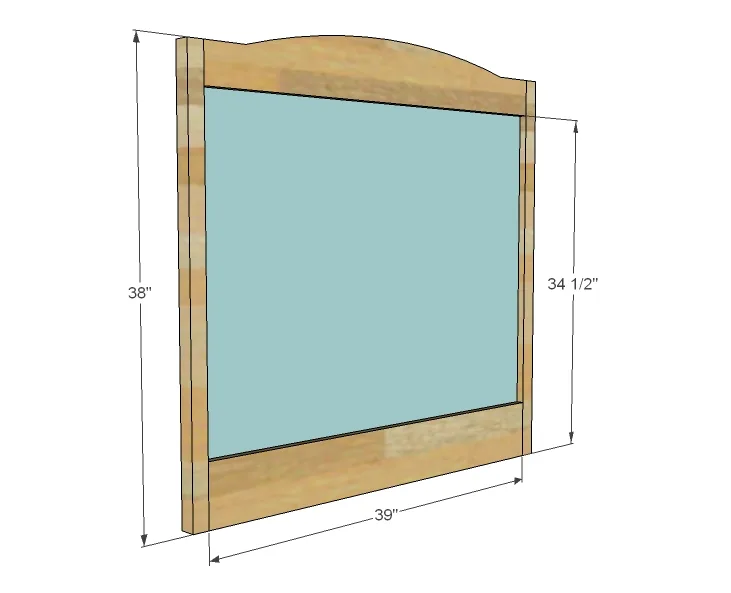

Build the headboard in the same manner as the footboard.

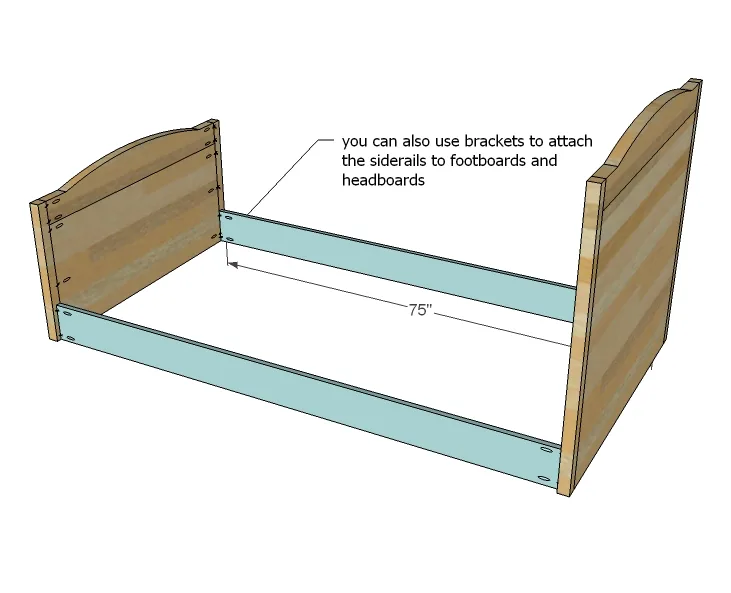

Step 5

Step 6

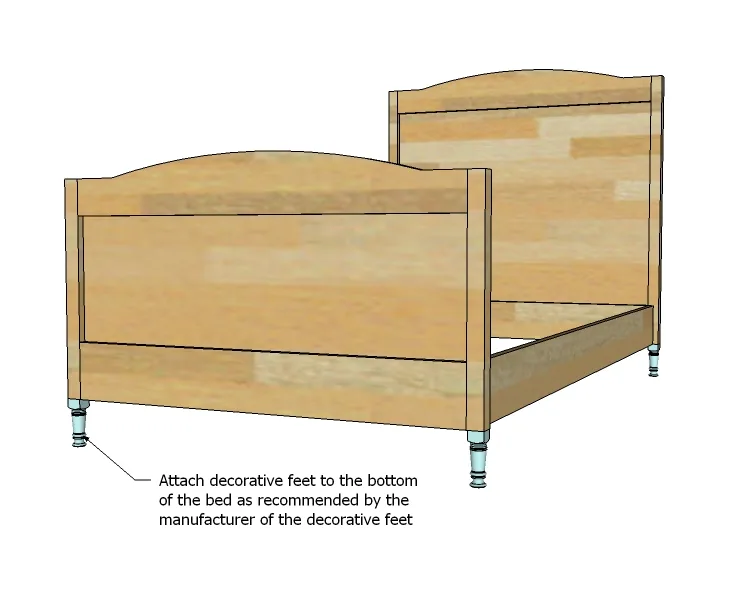

Add the decorative feet to the base of the bed.

Step 7

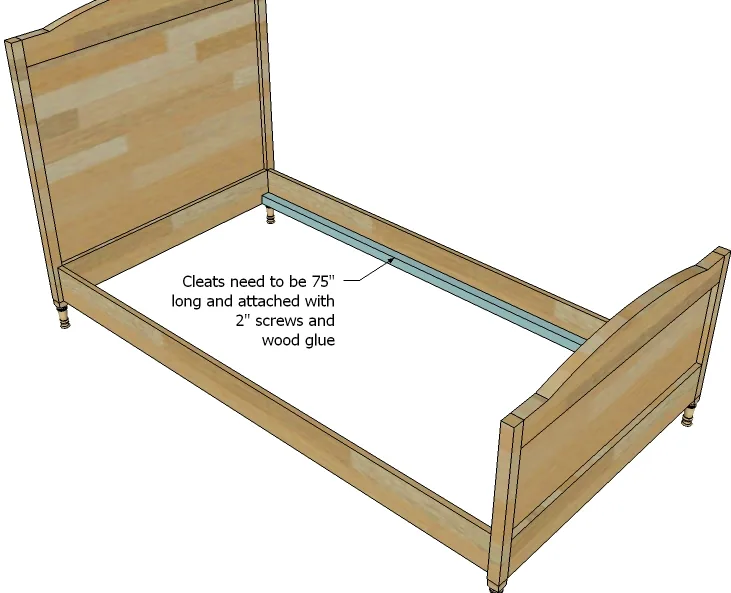

Now add the cleats to the inside of the siderails. If you are not using a box spring, you may wish to bring the cleat up - up to 1" from the top - for a mattress that sits higher. If you are using a boxspring, attach cleats flush to the bottom of the siderails.

Step 8

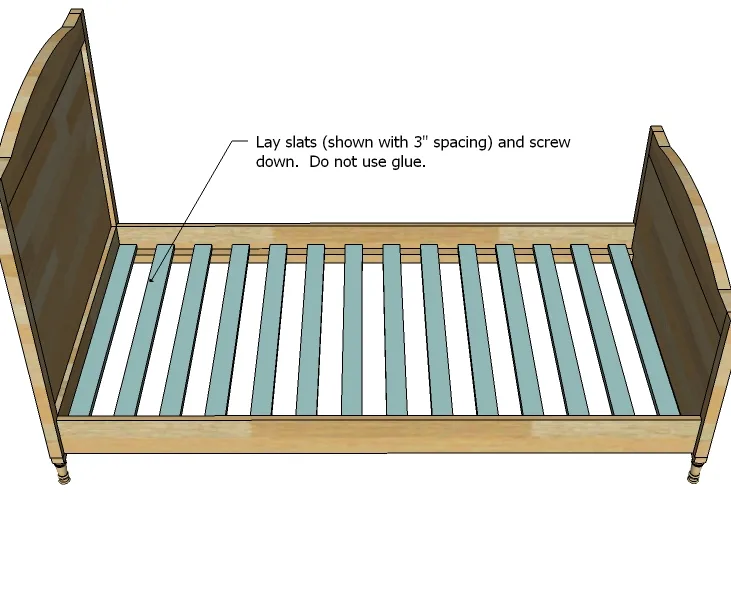

Now lay your slats on the cleats and screw down.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
