Cara Bookcase
to build a vintage style bookshelf with detailed feet and arched top. from feature detailed diagrams, shopping and cut list and more!

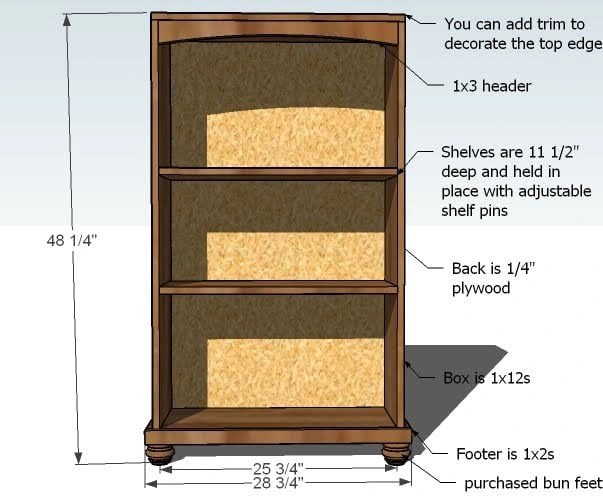

Dimensions
Use the size-specific shopping and cut lists below.
What you need
- 1 – 8′ 1×12 Boards
- 1 – 10′ 1×12 Board
- 1/4″ Plywood panel for back
- 1 – 1×2 - 8 feet long
- 1 – 1×3 - 8 feet long
- 2 – 1×12 @ 45 1/2″ (Sides)
- 1 – 1×12 @ 27 1/4″ (Top)
- 3 – 1×12 @ 25 3/4″ (Shelves)
- 1 – 1×3 @ 25 3/4″ (Header)
- 1 – 1/4″ Plywood @ 46 1/4″ x 27 1/4″ (Back)
- 2 – 1×2 @ 11 1/2″ (Side Footer)
- 1 – 1×2 @ 28 3/4″ (Front Footer)
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- drill
- circular saw
- jigsaw
- sander
Step by step

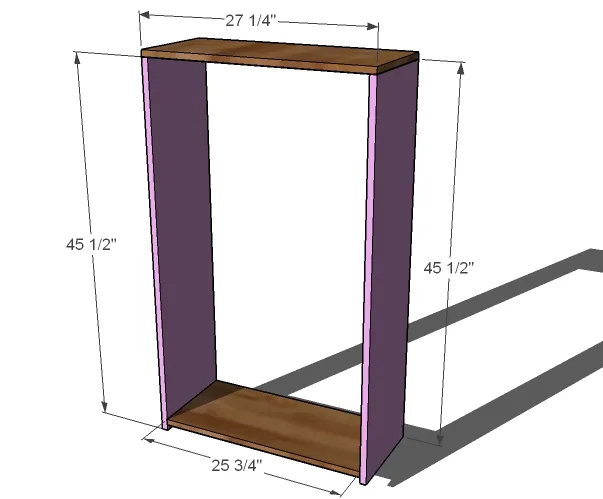

Build The Box
Screw the box together as shown here. Make sure there is a 3/4″ gap under the bottom shelf. Use 2″ screws and glue. Check for square.

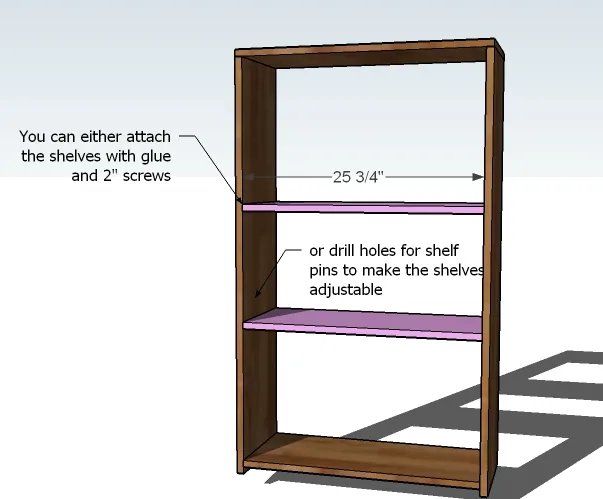

Shelves
You can either drill holes as specified by your shelf pins to create removeable shelves, or you can fasten the shelves in place with 2″ screws and glue.

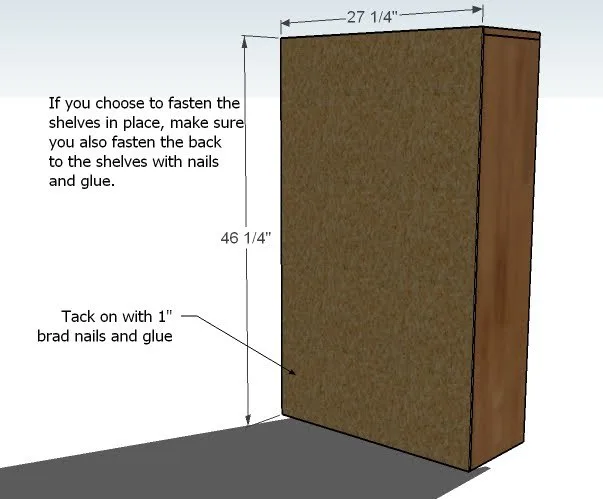

Back
Attach the back to the bookshelf as shown here. If your shelves are screwed in, also fasten to the shelves. Use glue and check for square.

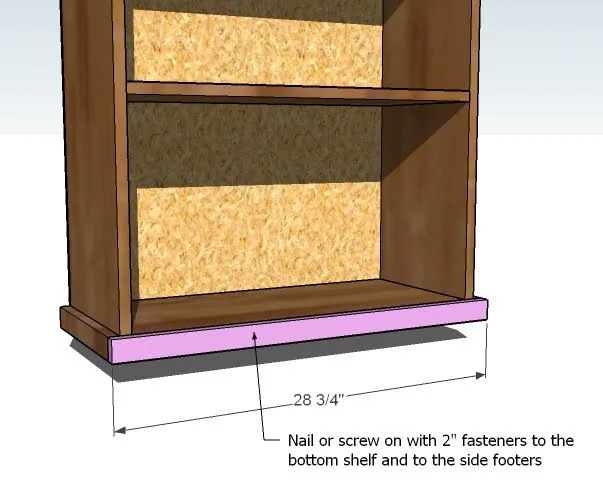

Side Footer
Attach the side footer to the bottoms of the bookcase as shown here. Use 1 1/4″ nails and glue.
Step 5

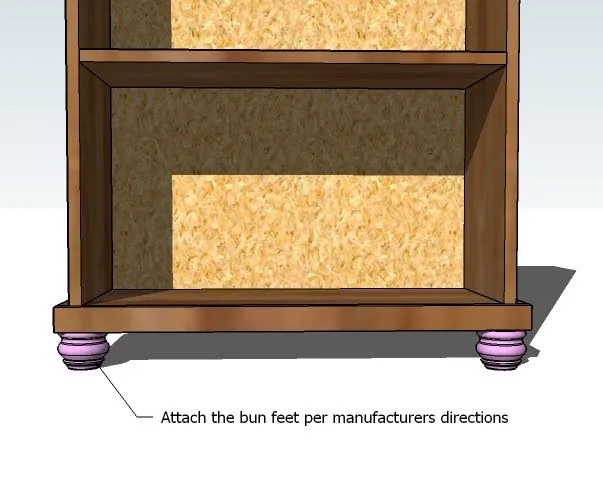

Bun Feet
Attach the bun feet as directed by the manufacturer.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
